The Chenab Rail Bridge, one of the highest bridge constructions in the world, is a real engineering marvel in India. Located in the Reasi district of Jammu and Kashmir, it stands as the highest rail bridge in the world. This engineering feat is a testament to India’s prowess in civil engineering, showcasing advanced technical design and construction techniques. In this article, we will delve into the technicalities, design aspects, and complete details of the Chenab Rail Bridge, providing a comprehensive case study from a civil engineering perspective.

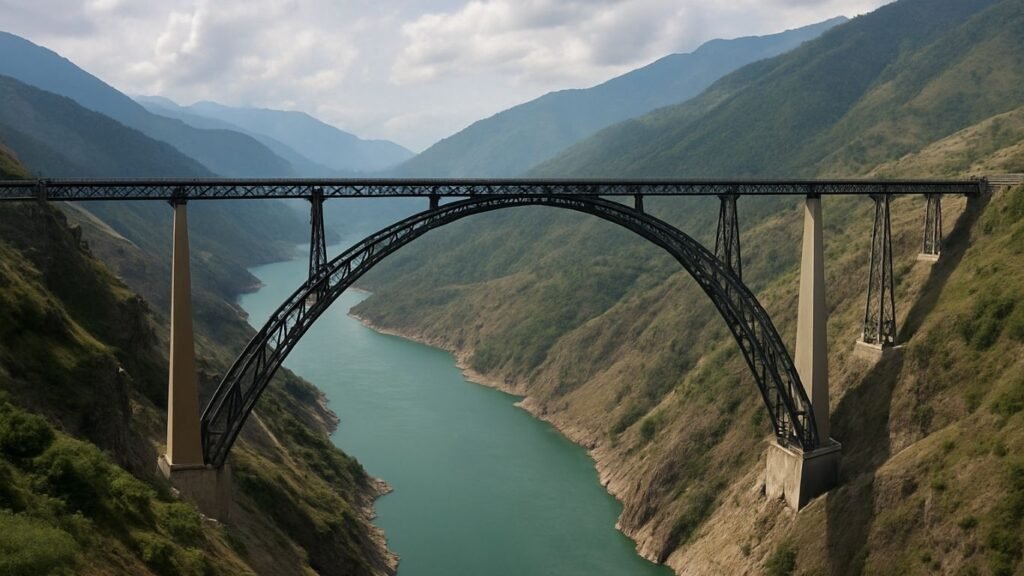

1. Introduction: Chenab Rail Bridge
The Chenab Rail Bridge is a crucial component of the Udhampur-Srinagar-Baramulla Rail Link (USBRL) project, which aims to enhance connectivity in the hilly region of Jammu and Kashmir. This ambitious project is crucial to integrating the region with the rest of India, facilitating efficient transportation and boosting economic growth. The bridge’s strategic location and impressive height make it a landmark achievement in Indian civil engineering, demonstrating the country’s ability to undertake and complete complex infrastructure projects.
2. Chenab Rail Bridge Historical Background and Purpose
The concept of the Chenab Rail Bridge was born out of the necessity to overcome the challenging terrain of Jammu and Kashmir, which had long hindered efficient transportation and connectivity. Here is a more detailed exploration of its historical background and purpose:
Challenging Terrain and Connectivity Issues
The rugged topography of Jammu and Kashmir, with steep valleys, deep gorges and high mountain ranges, presents significant obstacles to transportation. The existing infrastructure of the region was inadequate to meet the growing demands of its population and economy. The USBRL Project was envisaged to address these challenges by providing a reliable and efficient rail link that would bridge the gap between the Kashmir Valley and the rest of India.
Strategic Importance
The Chenab Rail Bridge was constructed over the mighty Chenab River, which flows through Reasi District. The strategic location of the bridge is critical to achieving the USBRL Project’s overarching goal of connecting Udhampur, Srinagar and Baramulla. This rail link is not only important for local connectivity but also has strategic importance for national security, as it enhances the mobility of goods, services and personnel to India’s northern borders.
Project initiation and development

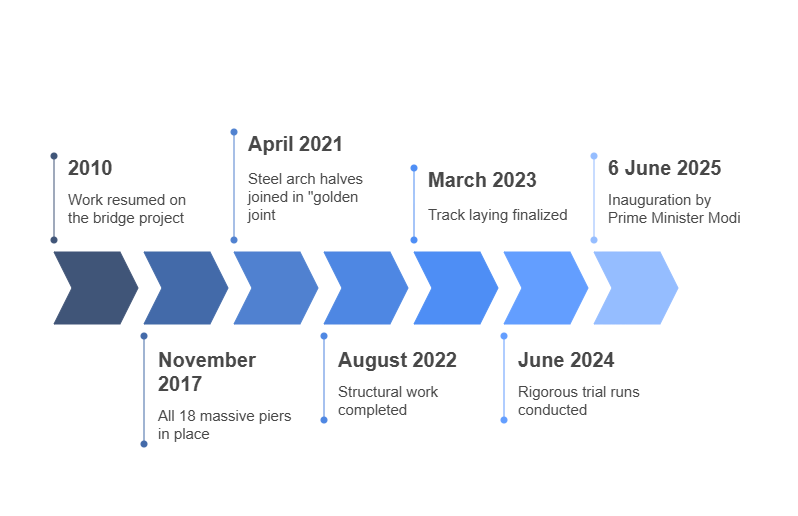

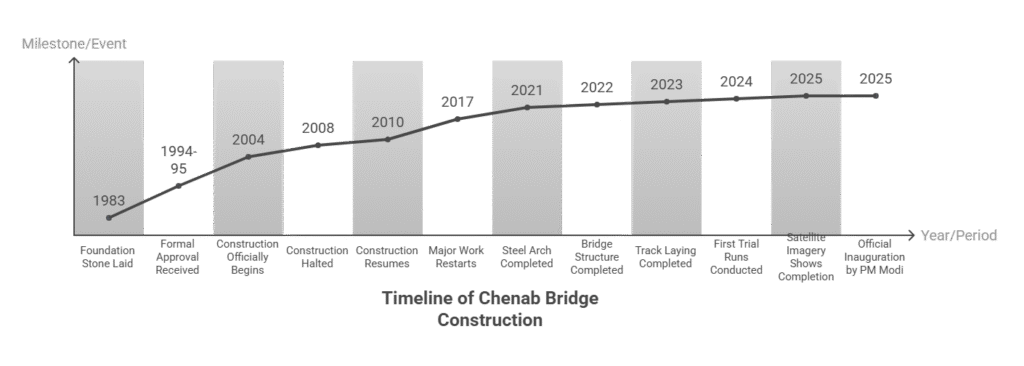

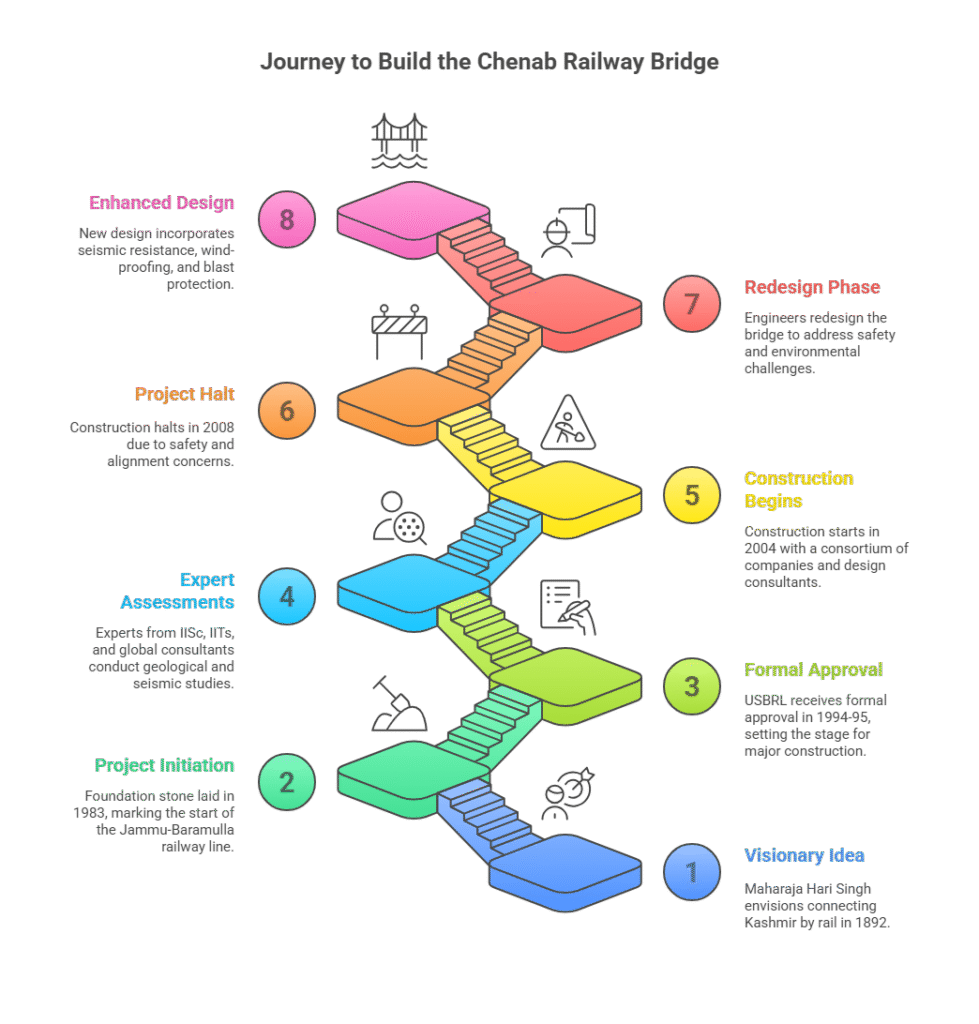

The USBRL project was approved in 2002 as a national priority to improve the region’s infrastructure. The Chenab Rail Bridge was one of the most ambitious components of the project due to its scale and the technical challenges involved. Construction of the bridge began in 2004, and it quickly became apparent that several engineering challenges would have to be overcome to complete the structure, including:
- Geological and Seismic Challenges: The region’s geological instability and high seismic activity required the bridge to be designed with robust structural integrity and advanced seismic resistance features.
- High Wind Speeds: The bridge’s design had to account for the region’s high wind speeds, necessitating aerodynamic considerations and wind-resistant construction techniques.
- Accessibility and Logistics: The remote location of the bridge site posed logistical challenges, including transporting heavy materials and equipment to the construction site through difficult terrain.
Engineering and design innovations
To address these challenges, the Chenab Rail Bridge project incorporated several engineering and design innovations:
- Arch design: The bridge features a massive steel arch, the largest of its kind, which provides the strength and stability needed to cross the Chenab River. The arch design also allows the bridge to withstand high winds and seismic forces.
- Cable-crane technology: Innovative cable-crane technology was used to connect the bridge components, ensuring precision and safety in construction.
- Use of high-strength materials: The bridge was constructed using high-strength steel and concrete to ensure durability and longevity.
- Enhances connectivity by linking remote areas and improving accessibility.
- Upgrades regional railway networks, boosting transportation efficiency.
- Stimulates economic growth by facilitating trade, tourism, and job creation.
- Strengthens defense and emergency response capabilities.
- Represents progress and modernization in Kashmir’s infrastructure.
- Promotes cultural exchange and unity among diverse communities.
- Minimizes environmental impact, preserving natural resources.
- Ensures lasting benefits for future generations through sustainable development.

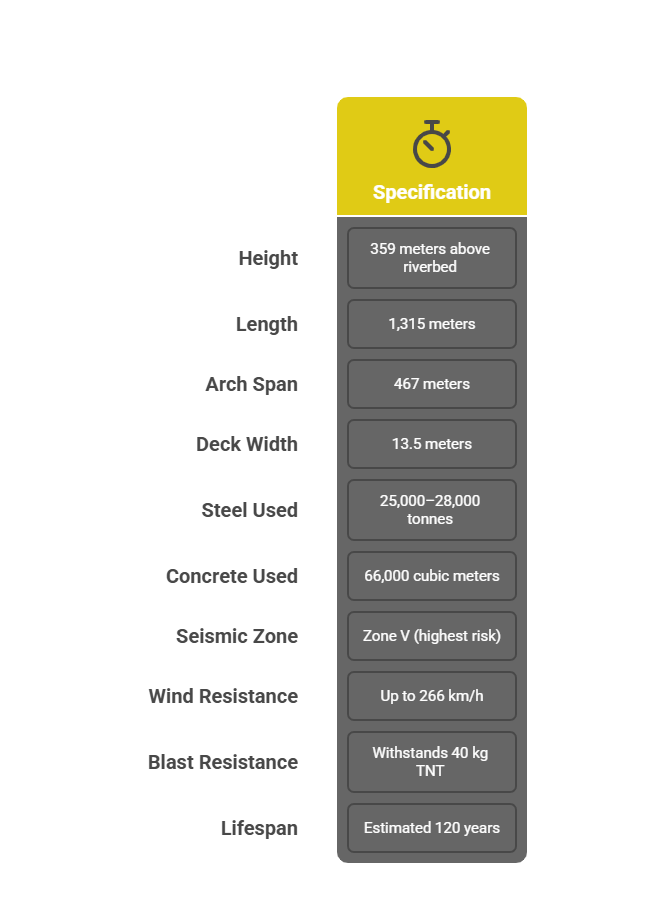

3. Technical Specifications
- Height: 359 meters (1,178 feet) above the Chenab River
- Length: 1,315 meters
- Arch Span: 467 meters
- Deck Width: 13.5 meters
- Design Speed: 100 km/h for trains
- Seismic Zone: Zone V (highest risk zone in India)
- Wind Speed Resistance: Up to 266 km/h
4. Design and Construction Challenges
The Chenab Rail Bridge posed numerous design and construction challenges due to its location in a high seismic zone and the steep, unstable terrain of the Himalayas. Some key challenges included:
- Geological Instability: The area is prone to landslides and rockfalls, requiring robust foundation solutions.
- Seismic Activity: The bridge had to be designed to withstand significant seismic forces.
- Wind Resistance: High wind speeds in the region necessitated a design that could withstand extreme wind conditions.
5. Materials and Techniques Used
- Steel: Approximately 25,000 metric tons of steel were used in the construction, ensuring strength and durability.
- Concrete: High-strength concrete was utilized for the foundations and piers.
- Advanced Fabrication: Components were fabricated using advanced techniques and transported to the site for assembly.
- Cable-Crane Technology: A unique cable-crane technology was employed to erect the arch and position the segments.
Safety and Durability Measures
- Seismic Dampers: Installed to absorb and dissipate seismic energy, reducing the impact on the structure.
- Wind Shields: Designed to protect the bridge from high wind speeds.
- Regular Inspections: Scheduled inspections and maintenance ensure the long-term durability of the bridge.
Economic and Social Impact
The Chenab Rail Bridge significantly impacts the region’s economy by improving connectivity and reducing travel time. It facilitates the movement of goods and people, promoting trade and tourism. Additionally, the bridge has provided numerous employment opportunities during its construction and continues to support local businesses.
Employment Generation
- Job opportunities for landowners whose land was acquired (1833.92 Ha), with 799 jobs given to eligible land givers.
- Employment through contractors: 14,069 (around 65% local employment).
- Over 500 lakh man-days of employment generated.
- Skill development for artisans, many now employed elsewhere.
Construction of Approach Roads
- Over 205 km of approach roads, including 1 tunnel and 320 bridges.
- Connectivity to 73 remote villages, benefitting around 1.5 lakh people.
- Improved access for vehicles, replacing foot or boat travel.
- PMGSY roads branching from these approach roads.
8. Conclusion
The Chenab Rail Bridge is a remarkable feat of engineering, overcoming immense challenges to stand as the world’s tallest rail bridge. Its design and construction reflect the ingenuity and skill of civil engineers, making it a landmark project that will serve as an important transportation link for generations to come.
For more detailed information and to join discussions on civil engineering topics, visit the Civil Engineering Community.
