In reinforced concrete construction (RCC), achieving a dependable bond between steel reinforcement and concrete is fundamental to structural integrity. Two terms that are often misused or misunderstood—development length and anchorage length—serve unique and critical purposes in load transfer and durability of RCC elements. While both concern how embedded reinforcement engages with concrete, their functions, design criteria, and behavior under stress are distinctly different.
What is Development Length?

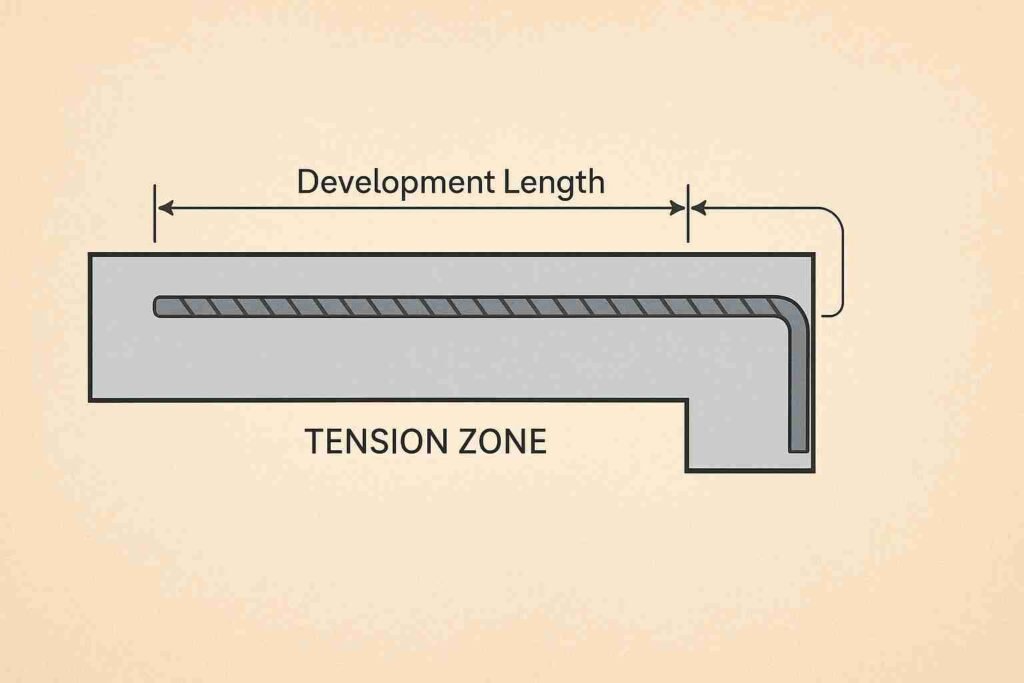

Development length (Ld) is the minimum length of reinforcing bar that must be embedded in concrete to develop the bar’s full tensile strength without experiencing slippage. This concept ensures that when the steel reinforcement is under load, the bond with concrete is strong enough to transfer stresses safely.
Formula for Development Length
According to IS 456:2000, the development length is calculated as:
L_d = \frac{\phi \times \sigma_s}{4 \times \tau_{bd}}Where:
- φ = Diameter of bar (mm)
- σs = Stress in the bar at the design load (N/mm²)
- τbd = Design bond stress between steel and concrete (N/mm²)
Applications of Development Length:
- Tension zones in beams and slabs
- Lap splice regions
- Bars under tensile stress in columns and walls
- Shear and bending zones where bond transfer is critical
Properly calculating and providing development length ensures full stress transfer and prevents premature failure due to bar slippage.
What is Anchorage Length?
Anchorage length is the extra length of reinforcement—often provided through hooks, bends, or straight extensions—used to anchor the bar securely into the concrete mass at critical zones. Unlike development length, which focuses on transferring tensile forces, anchorage ensures that reinforcement remains anchored where force concentration or sudden load changes occur, such as supports, corners, and terminations.
Common Anchorage Provisions:
- Standard hooks (90°, 135°, as per IS 2502)
- Bends at rebar terminations
- Straight embedment extensions in confined zones
- Mechanical anchors in special cases

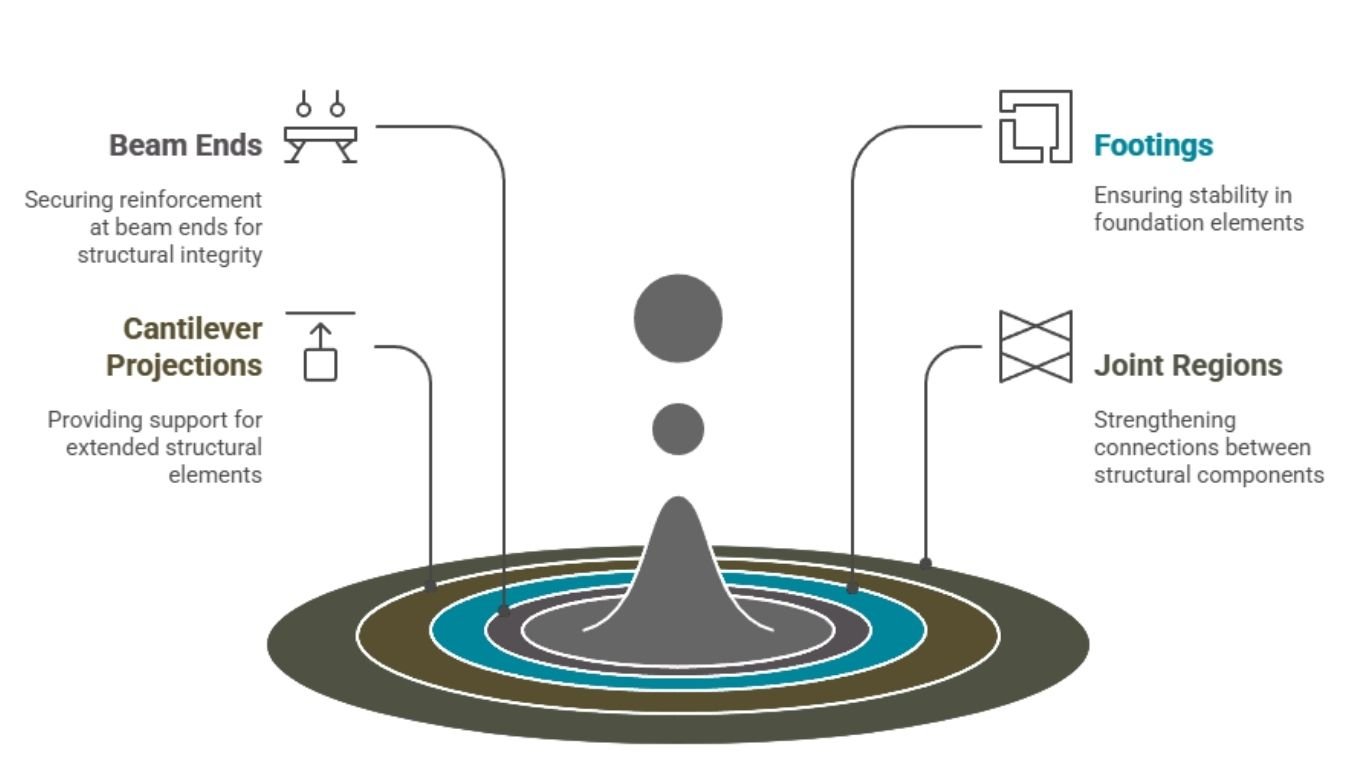

Applications of Anchorage Length:
- Beam ends and supports
- Footings and pile caps
- Cantilever projections
- Joint regions, e.g., column-beam interfaces
Anchorage is particularly crucial where space constraints or detailing complexity demand additional safety against bar pull-out.

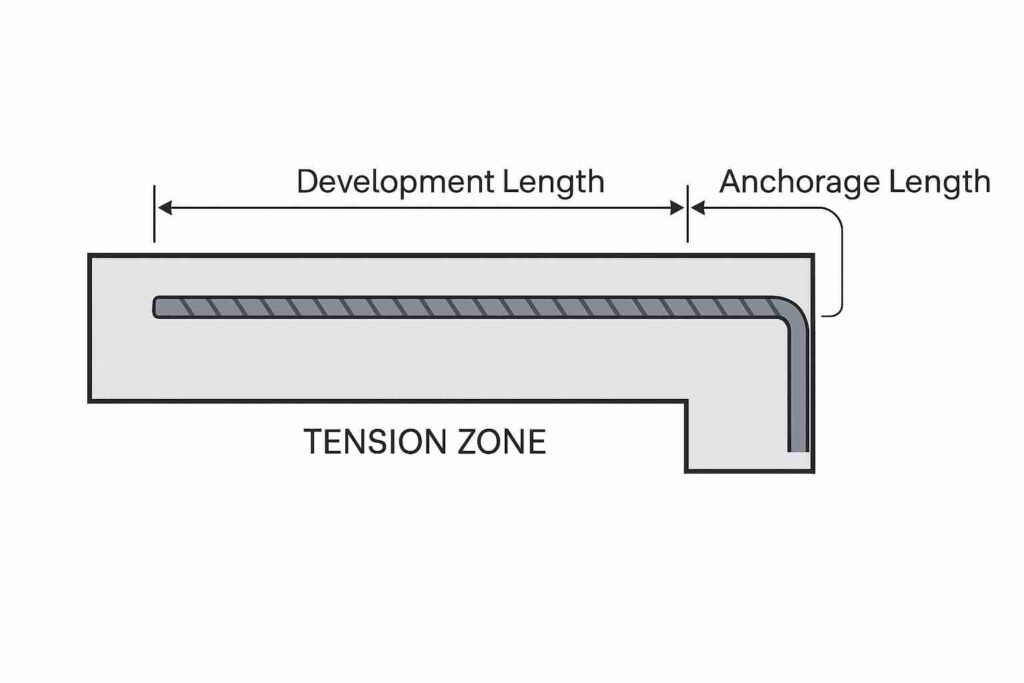

Development Length vs Anchorage Length: Tabulated Comparison
| Parameter | Development Length (Ld) | Anchorage Length |
|---|---|---|
| Purpose | Transfer full tensile force from steel to concrete | Prevent pull-out at bar ends or concentrated stress zones |
| Design Basis | Based on bar diameter, steel stress, bond stress | Based on geometry, location, and reinforcement detailing |
| Application Zone | Straight bars under tension | End zones, bends, hooks, joints, and splices |
| IS Code References | IS 456:2000, Clause 26.2.1 | IS 456:2000, IS 2502 (for hook and bend detailing) |
Practical Calculation Example
Let’s consider:
- Bar diameter (ϕ) = 16 mm
- Design stress in steel (σs) = 415 N/mm²
- Design bond stress (τbd) = 1.6 N/mm²
L_d = \frac{16 \times 415}{4 \times 1.6} = \frac{6640}{6.4} = 1037.5\, \text{mm}So, a minimum of 1037.5 mm straight embedment is required for this bar to develop full tensile strength.
If this bar is terminating near a support, a standard hook or bend is added for anchorage, ensuring additional safety and compliance with design detailing.
IS Code Guidelines and Detailing
According to IS 456:2000:
- Minimum anchorage length in tension = Development Length + Equivalent hook/bend lengths
- Compression bars may require only 80% of the Ld used in tension
- Hook and bend dimensions must follow IS 2502 for accurate detailing
These standards ensure consistent and safe reinforcement practices across RCC projects.
For a comprehensive collection of IS codes, including IS 456:2000 and other related standards, visit our IS Code Assistant where you can easily download all available IS codes for free and get quick access to them.
Typical Structural Use-Cases
- Beam-Column Joints: Require both development and anchorage to prevent interface cracking
- Cantilever Ends: Need proper anchorage through hooks to resist uplift and moment
- Lap Splicing Zones: Demand precise Ld values and supplementary anchorage where overlaps occur
- Footings: Anchored bars resist tensile stresses due to moment or eccentric loads
Common Design Pitfalls to Avoid
- Assuming hooks/bends replace the need for development length
- Neglecting anchorage detailing in congested or high-stress zones
- Using the same Ld for both tension and compression without adjustment
- Overlooking IS code stipulations for hook dimensions and bar curvatures
Conclusion: Integration is the Key to Safe RCC Design
Understanding and correctly applying both development length and anchorage length is vital to safe RCC construction. These two parameters ensure that stresses are effectively transferred between steel and concrete, and that reinforcement remains reliably engaged across all load paths.
Their roles may differ—but when combined correctly, they strengthen the integrity, safety, and durability of the entire structural system.
🧱 FAQs: Development Length and Anchorage Length in RCC
Q1. What is the difference between development length and anchorage length?
Development length is the minimum length of rebar needed to transfer tensile stress into concrete. Anchorage length refers to the extended bar portion (like hooks or bends) that ensures the bar remains embedded at ends or high-stress zones. Both prevent slippage but serve different design functions.
Q2. What is the standard hook length in anchorage?
According to IS 2502, a standard 90° hook is 8 times the bar diameter (8ϕ), and a 135° hook is 10ϕ. These values help calculate anchorage where rebar terminates or bends.
Q3. Can anchorage length replace development length?
No, anchorage length does not replace development length. They work together. Development length ensures stress transfer; anchorage adds grip, especially at ends, corners, and supports.
Q4. When is anchorage length required in RCC structures?
Anchorage is critical at beam ends, cantilever tips, column joints, foundation zones, and wherever rebar changes direction or terminates. It’s essential in seismic and load-intensive areas.
Q5. What are the IS codes related to development and anchorage length?
IS 456:2000 – Clause 26.2.1 for development length
IS 2502 – Hook, bend, and anchorage detailing
IS 13920 – Additional seismic detailing for anchorage in earthquake-prone zones
Q6. How do lap length and development length differ?
Lap length refers to the overlap of two bars to maintain continuity. Development length ensures the full strength of one bar is transferred into concrete. In tension zones, lap length = development length.
Q7. What happens if development length is insufficient?
Insufficient development length can cause rebar slippage, cracking at joints, structural instability, and premature failure under tension or flexural loads.
Q8. How can I ensure proper anchorage in congested reinforcement zones?
Use mechanical couplers, bend rebar as per IS 2502 standards, and avoid over-bending. Follow structural detailing drawings carefully and avoid stacking bars too tightly.
Q9. Is development length required in compression zones?
Yes, but the required Ld is reduced. As per IS 456, the development length in compression can be taken as 80% of that in tension.
