Concrete is the backbone of any construction project—whether it’s laying a foundation, building columns, or finishing a slab. But what happens when you’re working at a site where there’s no access to a concrete mixer?
This is where knowing how to calculate the concrete mix ratio manually becomes not just useful—but essential.
Let’s walk through a practical, field-ready approach to understanding and preparing the correct concrete mix ratio on-site, using just simple tools, experience, and the right knowledge.
Why Mix Ratio Matters in Concrete
The mix ratio of concrete determines the strength, durability, and workability of the final product. An incorrect mix can lead to weak structures, cracks, or rapid deterioration.
When working manually—without a mixer—you must get your proportions right using basic volume measures (like pans or head pans), as most construction sites in India and other developing countries still use this approach.

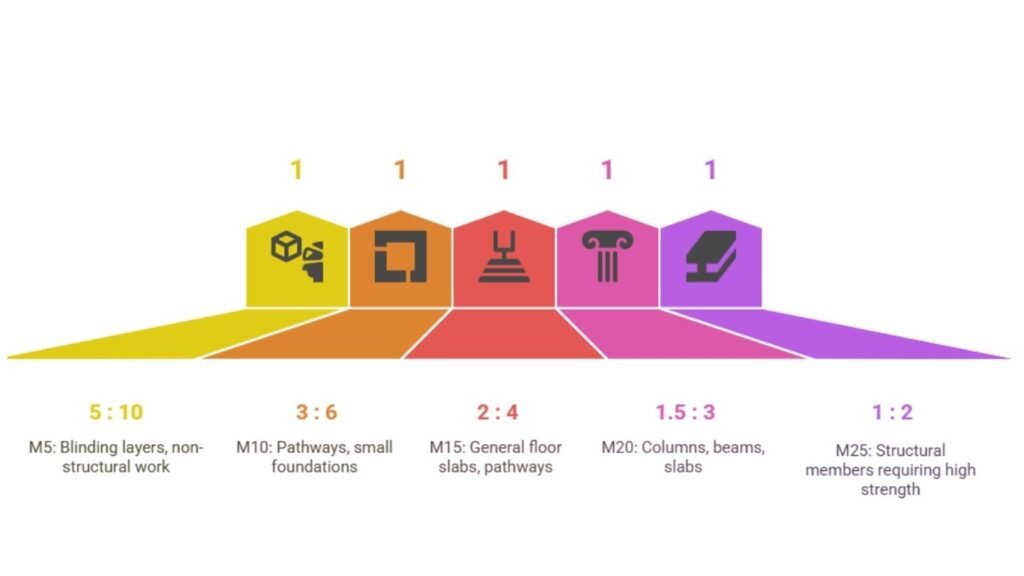

Commonly Used Concrete Mix Ratios on Site
Here are the most frequently used standard mix ratios based on purpose:
| Mix Type | Ratio (Cement : Sand : Aggregate) | Application |
|---|---|---|
| M5 | 1 : 5 : 10 | Blinding layers, non-structural work |
| M10 | 1 : 3 : 6 | Pathways, small foundations |
| M15 | 1 : 2 : 4 | General floor slabs, pathways |
| M20 | 1 : 1.5 : 3 | Columns, beams, slabs |
| M25 | 1 : 1 : 2 | Structural members requiring high strength |

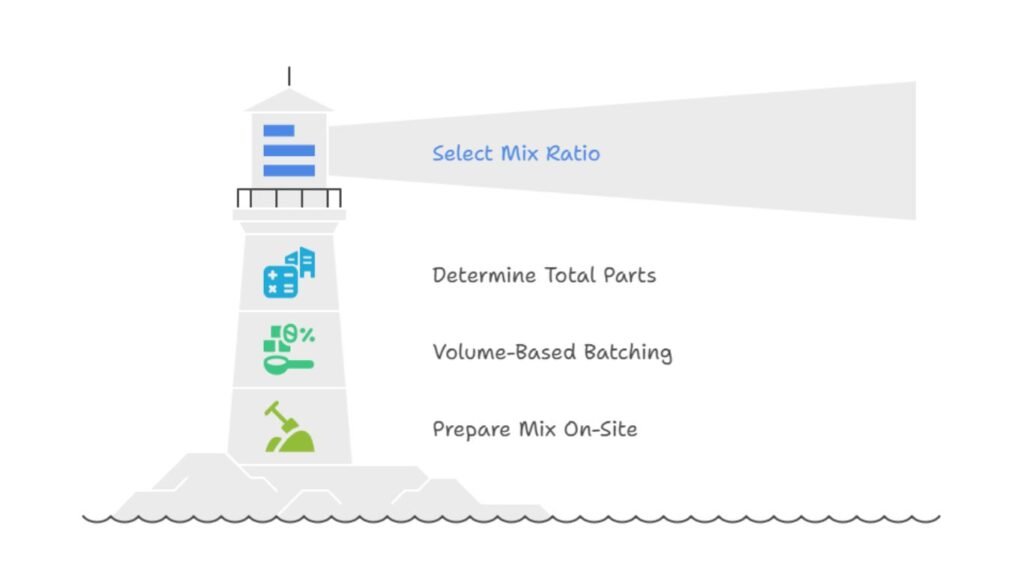

Step-by-Step Guide to Calculate Concrete Mix Ratio Without a Mixer
Step 1: Select Your Mix Ratio
Let’s say you want to use M20 grade concrete, which means the ratio is 1:1.5:3 (Cement:Sand:Coarse Aggregate).
Step 2: Determine Total Parts
Add the parts together:
1 + 1.5 + 3 = 5.5 parts
This is the total volume of dry material you’ll need.
Step 3: Use Volume-Based Batching
Let’s assume you’re using head pans or buckets for measurement. To mix 1 cubic meter of M20 grade concrete:
Cement:
= (1/5.5) × 1 m³ = 0.181 m³
Convert to bags (since 1 bag = 0.035 m³):
= 0.181 / 0.035 = ~5.17 bags of cement
Sand:
= (1.5/5.5) × 1 m³ = 0.27 m³
Aggregate:
= (3/5.5) × 1 m³ = 0.545 m³
How to Mix Without a Concrete Mixer
Manual mixing can be done on a clean, non-porous surface:
- Measure materials using pans or buckets.
- Spread the sand and cement first. Mix them dry until uniform in color.
- Add the coarse aggregate and mix dry again.
- Slowly add water and mix in small batches using shovels or hoes.
- Ensure the mix is workable but not too wet. Water-cement ratio should ideally be around 0.45–0.5.
Tip: Always add water gradually and monitor consistency carefully. Too much water weakens the mix.
Water-Cement Ratio: Key to Strength
Even with the perfect ratio of dry ingredients, adding too much water can drastically reduce concrete strength.
For M20 grade:
- Recommended water-cement ratio = 0.50
- For 1 bag of cement (50 kg), use ~25 liters of water
Use a measuring can to avoid guesswork. Avoid pouring water from buckets without a count.

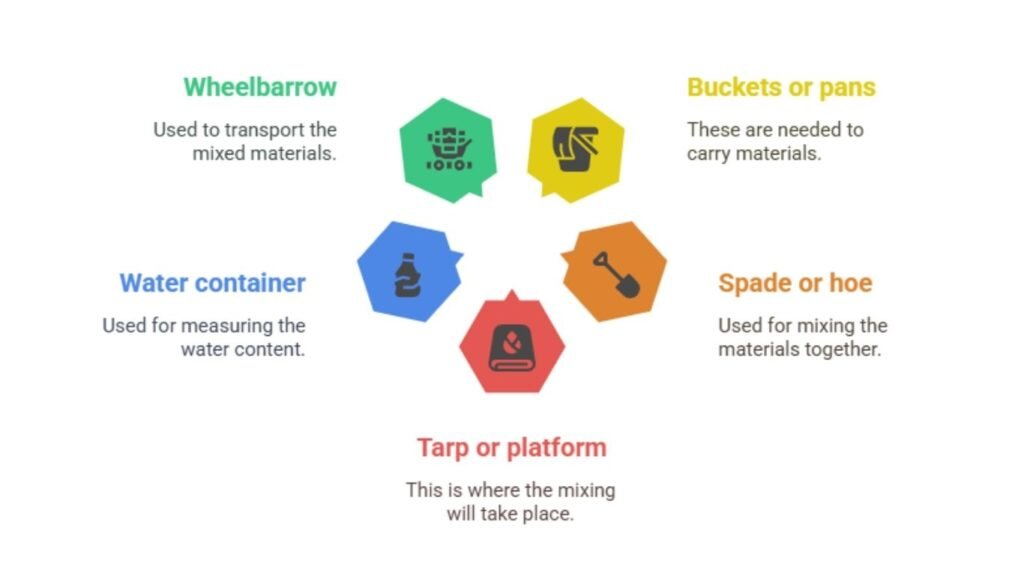

Tools You Can Use On-Site
Here’s what you’ll typically need:
- Buckets or head pans
- Spade or hoe for mixing
- Tarp or mixing platform
- Water measuring container
- Wheelbarrow for transporting
Safety Tips When Mixing Concrete Manually
- Wear gloves and a mask to protect from cement dust.
- Do not allow skin contact with wet concrete—it’s highly alkaline.
- Wash tools immediately after use.
FAQs for Manual Concrete Mix Ratio on Site
1. How do you calculate the concrete mix ratio manually on site?
To calculate the concrete mix manually, first select the required grade (e.g., M20 = 1:1.5:3 for cement:sand:aggregate). Add the parts (1+1.5+3 = 5.5), then divide each part by the total and multiply by the required volume. For 1 cubic meter of M20 concrete, you’ll need about 5.17 bags of cement, 0.27 m³ of sand, and 0.545 m³ of aggregate.
2. What are the most commonly used concrete mix ratios on site?
tandard concrete mix ratios used on construction sites include:
M5 (1:5:10) – for non-structural works
M10 (1:3:6) – for base layers and pathways
M15 (1:2:4) – for floors and footpaths
M20 (1:1.5:3) – for slabs, columns, beams
M25 (1:1:2) – for high-strength structural elements
3. Can you mix concrete manually without a mixer?
Yes, concrete can be mixed manually on a clean surface using tools like head pans, hoes, and buckets. Dry materials should be mixed first, then water added gradually while ensuring consistency and proper proportions.
4. What is the ideal water-cement ratio for M20 concrete mix?
The recommended water-cement ratio for M20 grade concrete is 0.50. For one 50 kg bag of cement, use around 25 liters of water to achieve proper workability and strength.
5. What tools are needed to mix concrete manually on-site?
Manual mixing requires basic tools such as:
Buckets or head pans (for measuring)
Shovels or hoes (for mixing)
Tarp or platform (for clean mixing surface)
Water measuring can
Wheelbarrow (for transporting mix)
6. Is manual concrete mixing suitable for structural work?
Manual mixing is acceptable for small structural elements if done correctly. However, for large-scale structural work, machine mixing is preferred to ensure uniformity and strength.
7. How many bags of cement are used in 1 cubic meter of concrete (M20)?
Approximately 5.17 bags of cement are required to prepare 1 cubic meter of M20 grade concrete when using the 1:1.5:3 mix ratio.
8. What happens if the concrete mix ratio is not accurate?
Using the wrong mix ratio can result in weak concrete, cracks, reduced load capacity, poor durability, and even structural failure. Accurate proportions are essential for safety and performance.
9. What is volume batching in concrete mixing?
Volume batching refers to measuring concrete ingredients by volume (e.g., using pans or buckets), not by weight. It’s commonly used on construction sites where digital weighing tools are not available.
10. Why is it important to follow proper mix ratios?
Correct mix ratios ensure the concrete achieves desired strength, workability, and durability. It reduces the risk of failure, improves structural life, and ensures code compliance (e.g., IS 456 standards in India).
