A practical guide for engineers who want to make the right structural decisions on every project
Introduction; The Beam Decision That Makes or Breaks Your Structure
Lets Imagine You’re standing on a construction site at 7 AM, coffee in hand, looking at freshly excavated foundations. Your site supervisor walks up with a question that every civil engineer faces: “Sir, do we need plinth beams or tie beams here?”
This isn’t just a technical question—it’s a decision that affects:
- Structural stability for decades
- Project cost and timeline
- Safety during construction
- Long-term maintenance requirements

As a structural engineer with 15+ years of field experience, I’ve seen projects succeed brilliantly and fail spectacularly based on this single decision. The difference between Plinth beams and Tie beams isn’t just academic—it’s practical knowledge that separates confident engineers from confused ones.
Here’s what you’ll learn in the next few minutes:
- Crystal-clear definitions that go beyond textbook explanations
- When to use each beam type (with real project examples)
- Technical specifications per IS codes
- A simple decision framework you can use immediately
- Common mistakes that cost projects time and money
Let’s dive into the details that matter on actual construction sites.

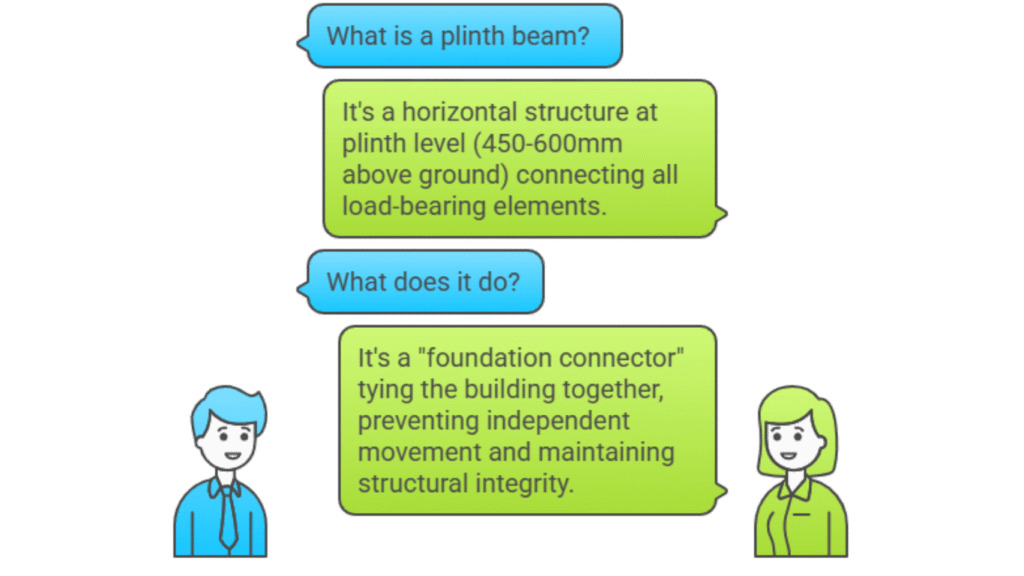

What Exactly is a Plinth Beam? (The Foundation Protector)
Simple Definition
A plinth beam is a horizontal structural member constructed at plinth level (typically 450-600mm above ground level) that connects all load-bearing elements at the base of a structure.
Think of it as the “foundation connector” that ties your entire building (columns or walls of a building at their base) together just above the natural ground and below the ground floor slab.

Real-World Analogy
Imagine a table with four legs. Without cross-bracing between the legs, the table wobbles. A plinth beam is like that cross-bracing—it prevents your building’s foundation from moving independently and maintains structural integrity.
Also Read: 5 Common Misunderstandings About Plinth Beams (And What You Should Know Instead)
Key Characteristics of Plinth Beams
Physical Properties:
- Location: At plinth level (450-600mm above ground)
- Purpose: Connects isolated footings and load-bearing walls
- Load Type: Primarily handles lateral forces and some vertical loads
- Construction Stage: Built after foundation completion, before superstructure
Typical Dimensions per IS 456:2000:
- Width: 230mm to 300mm (minimum as per IS 456:2000, Clause 26.5.1.1)
- Depth: 300mm to 450mm (based on span and loading)
- Reinforcement: Minimum 0.2% of cross-sectional area
- Concrete Grade: M20 or higher (as per IS 456:2000)
Why Plinth Beams Are Essential
1. Differential Settlement Prevention When soil conditions vary across your site, individual footings may settle at different rates. Plinth beams distribute these movements, preventing:
- Wall cracks
- Door and window misalignment
- Structural distress
2. Lateral Stability During earthquakes or wind loads, plinth beams prevent footings from spreading apart, maintaining structural geometry.
3. Moisture Protection Plinth beams create a continuous barrier that prevents ground moisture from rising into walls—critical in areas with high water tables.
Case Study A Clear Example: In a residential project in Kerala (high rainfall area), plinth beams at 600mm height prevented flood water from entering the structure during monsoon flooding, while also tying together 12 isolated footings across varying soil conditions.

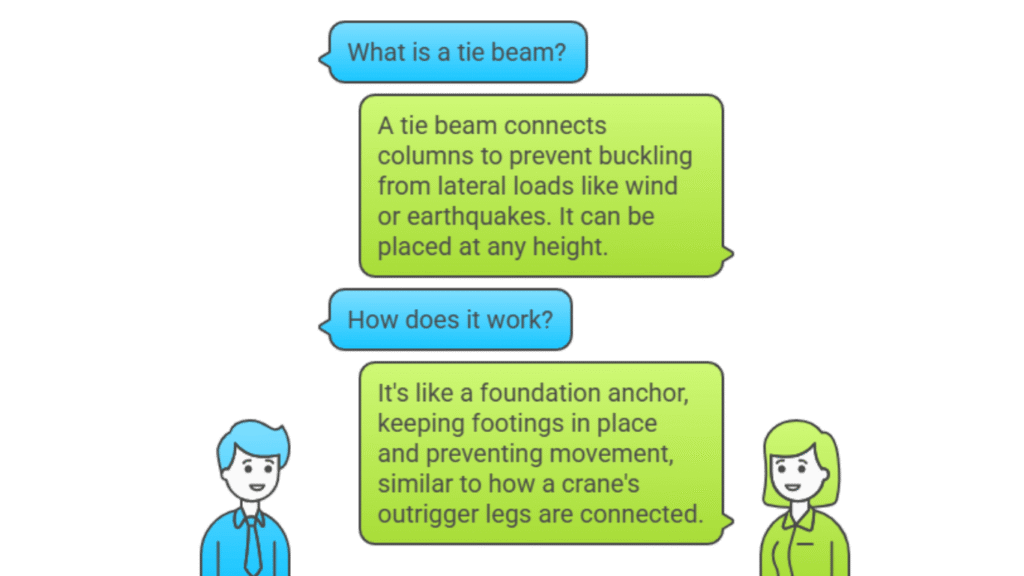

What Exactly is a Tie Beam? (The Foundation Stabilizer)
Simple Definition
A tie beam is a beam that connects two or more columns to prevent them from buckling or moving due to lateral loads like wind or earthquakes. Unlike plinth beams, tie beams can be placed at any height in the structure—plinth, lintel, or roof level.
Think of it as the “foundation anchor” that keeps your footings exactly where they should be.

Real-World Analogy
Picture a construction crane with its outrigger legs extended. Without connecting these legs, wind could push the crane over. Tie beams work similarly—they’re the underground connectors that keep your footings rock-solid and prevent foundation movement.
Key Characteristics of Tie Beams
Physical Properties:
- Location: At foundation level (top of footings, below ground level)
- Purpose: Prevents lateral displacement of individual footings
- Load Type: Primarily tension and compression forces
- Construction Stage: Built immediately after footing completion
Typical Dimensions per IS 456:2000:
- Width: 200mm to 300mm (minimum 200mm as per IS 456:2000)
- Depth: 200mm to 400mm (based on span and soil conditions)
- Reinforcement: Minimum 0.15% of cross-sectional area
- Concrete Grade: M15 to M20 (minimum M15 as per IS 456:2000)
Also read: What Is a Plinth Beam? Definition, Purpose & Construction Guide [2025]
Why Tie Beams Are Critical
1. Foundation Stability In earthquake-prone areas or on soft soils, individual footings can move laterally. Tie beams create a rigid connection system that maintains foundation geometry.
2. Load Distribution When one footing experiences higher loads, tie beams help distribute excess forces to adjacent footings, preventing overloading.
3. Construction Stability During construction, tie beams provide temporary stability while the superstructure is being built.
Case Study Example: In a commercial building in Gurgaon with loose sandy soil, tie beams connecting 16 isolated footings prevented lateral displacement during a minor earthquake (4.1 magnitude), while similar buildings without tie beams in the area experienced foundation settlement.

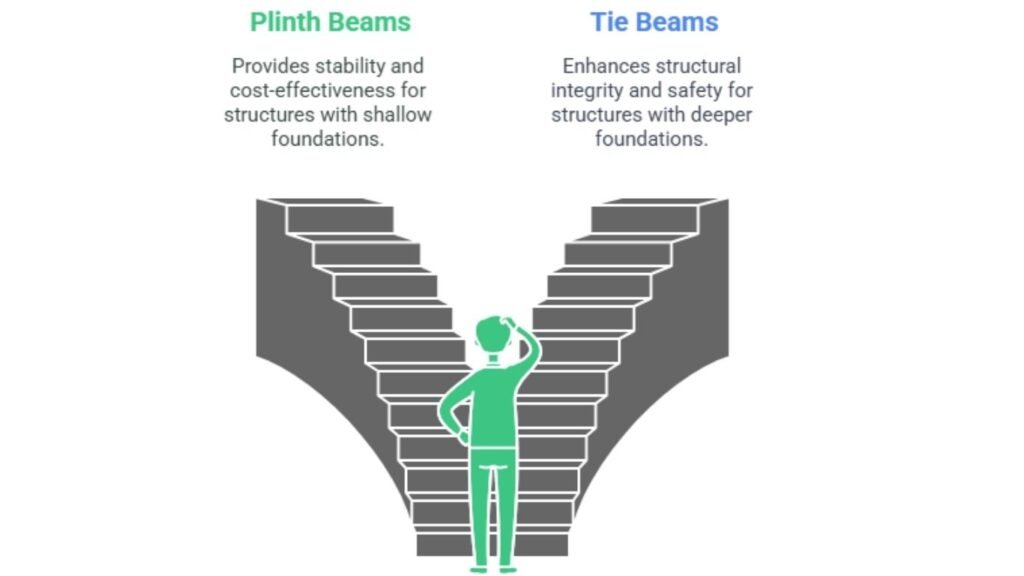

Plinth Beam vs Tie Beam: The Complete Comparison
Side-by-Side Technical Comparison
Aspect | Plinth Beam | Tie Beam |
Location | At plinth level (450-600mm above ground) | At foundation level (top of footings) |
Primary Function | Connects load-bearing elements, moisture barrier (DPC) | Prevents footing displacement |
Visibility | Visible above ground | Hidden below ground |
Load Handling | Vertical + lateral loads | Primarily lateral forces |
Construction Cost | Higher (more concrete, above-ground work) | Lower (smaller sections, below-ground) |
Maintenance | Regular inspection possible | Limited access for maintenance |
Seismic Role | Secondary seismic resistance | Primary foundation stability |
Soil Type Dependency | Less dependent on soil type | Critical in poor soil conditions |
When to Use Plinth Beams: The Decision Matrix
Use Plinth Beams When:
1. High Water Table Areas
- Locations with seasonal flooding
- Coastal areas with salt water intrusion
- Areas with poor surface drainage
2. Load-Bearing Wall Systems
- Traditional brick/stone masonry construction
- When you need to connect multiple wall supports
- Buildings with significant lateral loads
3. Uneven Ground Conditions
- Sloping sites requiring level construction
- Areas with varying soil conditions
- Sites with potential differential settlement
Real Project Example: 3-story residential building in Mumbai monsoon zone
- Challenge: Heavy rainfall, high water table, load-bearing walls
- Solution: 450mm high plinth beams with waterproofing
- Result: Zero moisture ingress over 8 years, no settlement cracks
When to Use Tie Beams: The Decision Matrix
Use Tie Beams When:
1. Soft or Loose Soil Conditions
- Sandy soils with low bearing capacity
- Clay soils prone to lateral movement
- Recently filled or made-up ground
2. Seismic Zones (III, IV, V)
- Areas prone to earthquakes
- When IS 13920 compliance is mandatory
- Buildings requiring enhanced foundation stability
3. Isolated Footing Systems
- Column-based structural systems
- Industrial buildings with point loads
- Structures with irregular column spacing
Real Project Example: Industrial warehouse in Bhuj, Gujarat (Seismic Zone V)
- Challenge: Earthquake risk, isolated footings, sandy soil
- Solution: Comprehensive tie beam network at footing level
- Result: No foundation damage during 2001 earthquake aftershocks
Also Read: What are Beams Based on Geometry
Technical Design Guidelines per IS Codes
Plinth Beam Design per IS 456:2000
Minimum Reinforcement Requirements:
Minimum steel = 0.2% of cross-sectional area
For 230mm × 300mm beam:
Minimum steel = 0.002 × 230 × 300 = 138 sq.mm
Use: 4 bars of 12mm dia (452 sq.mm) – Safe
Load Calculations:
- Dead Load: Self-weight + wall load above
- Live Load: Floor loads transferred through walls
- Wind Load: Lateral forces from structure above
- Seismic Load: As per IS 1893:2016
Concrete Specifications:
- Grade: Minimum M20 (as per IS 456:2000, Clause 9.1)
- Cover: 25mm minimum (normal exposure)
- Water-Cement Ratio: Maximum 0.50
Tie Beam Design per IS 456:2000
Design Philosophy: Tie beams are designed primarily for tension and compression forces, not bending moments.
Force Calculation:
Minimum design force = 10% of maximum column load
For 1000 kN column load:
Design force = 100 kN (tension or compression)
Reinforcement Design:
Steel required = Design Force / (0.87 × fy)
For 100 kN force with Fe 415 steel:
Steel = 100,000 / (0.87 × 415) = 277 sq.mm
Use: 4 bars of 12mm dia (452 sq.mm)
Concrete Specifications:
- Grade: Minimum M15 (as per IS 456:2000)
- Cover: 50mm minimum (below ground level)
- Water-Cement Ratio: Maximum 0.55
Also Read: What are Beams Based on Geometry
Common Mistakes That Cost Projects Time and Money
Top 5 Plinth Beam Errors
1. Inadequate Height Above Ground Level
- Mistake: Keeping plinth beam at 300mm height
- Problem: Insufficient protection from moisture and flooding
- Solution: Minimum 450mm height as per NBC 2016
2. Poor Waterproofing Integration
- Mistake: Treating waterproofing as separate work
- Problem: Water seepage through beam-wall junction
- Solution: Integrated waterproofing design during beam construction
3. Insufficient Reinforcement Continuity
- Mistake: Breaking reinforcement at corners
- Problem: Weak connections, potential cracking
- Solution: Proper lap lengths and corner detailing per IS 456
4. Ignoring Thermal Expansion
- Mistake: Long continuous beams without expansion joints
- Problem: Thermal cracks, structural distress
- Solution: Expansion joints every 30-45 meters
5. Inadequate Foundation Connection
- Mistake: Poor anchorage into footings
- Problem: Beam-footing joint failure
- Solution: Proper dowel bar design and development length
Top 5 Tie Beam Errors
1. Skipping Tie Beams in “Good Soil”
- Mistake: Assuming good soil doesn’t need tie beams
- Problem: Earthquake vulnerability, lateral instability
- Solution: Always provide tie beams in seismic zones
2. Inadequate Cross-Sectional Area
- Mistake: Using minimum sizes without load calculation
- Problem: Insufficient force transfer capacity
- Solution: Design based on actual column loads
3. Poor Connection to Footings
- Mistake: Insufficient embedment in footings
- Problem: Connection failure under seismic loads
- Solution: Minimum 300mm embedment with proper reinforcement
4. Ignoring Construction Sequence
- Mistake: Casting tie beams before footing concrete cures
- Problem: Poor bond, potential joint failure
- Solution: Allow minimum 7 days curing before tie beam casting
5. Inadequate Reinforcement Detailing
- Mistake: Straight bars without proper hooks
- Problem: Reinforcement pullout under tension
- Solution: Proper hook details per IS 456:2000
Decision Framework: Your 5-Minute Choice Guide
The Quick Decision Tree
Step 1: Check Your Location – High water table/flood-prone area? → YES: Plinth beams mandatory → NO: Continue to Step 2
Step 2: Analyze Your Structure – Load-bearing walls or column structure? → Load-bearing walls: Plinth beams preferred → Column structure: Continue to Step 3
Step 3: Evaluate Soil Conditions – Soft/loose soil or seismic zone III-V? → YES: Tie beams mandatory → NO: Continue to Step 4
Step 4: Consider Both Systems – Complex conditions or high-value project? → Use both systems for maximum safety
Cost-Benefit Analysis Framework
Quick Cost Estimation (per running meter):
Beam Type | Material Cost | Labor Cost | Total Cost |
Plinth Beam (230×300mm) | Rs. 800-1,200 | Rs. 400-600 | Rs. 1,200-1,800 |
Tie Beam (200×300mm) | Rs. 600-900 | Rs. 300-450 | Rs. 900-1,350 |
Value Analysis:
- Prevention cost: 2-3% of total foundation cost
- Failure repair cost: 15-25% of total project cost
- ROI of proper beam selection: 500-800%
Conclusion: Making the Right Choice Every Time
After 15 years of structural engineering practice and countless foundation projects, here’s what I’ve learned:
The right beam choice isn’t about following rules blindly—it’s about understanding your specific project needs and making informed decisions.
Key Takeaways for Engineering Excellence
1. Context is King Every project is unique. Soil conditions, climate, structural system, and budget all influence the optimal beam choice.
2. Safety First, Always When in doubt, err on the side of caution. The cost of proper beam systems is insignificant compared to failure consequences.
3. Code Compliance is Non-Negotiable IS codes exist for good reasons. Follow them diligently, and you’ll avoid most common problems.
4. Think Long-Term Design for 50+ year service life. Today’s small investment prevents tomorrow’s major problems.
5. Document Everything Good documentation during design and construction saves time during future modifications or investigations.
Your Action Plan
For Your Next Project:
- Analyze thoroughly: Don’t assume—investigate soil conditions, seismic requirements, and environmental factors
- Calculate properly: Use actual loads and forces, not thumb rules
- Detail carefully: Good construction starts with clear, complete drawings
- Supervise actively: Be present during critical construction phases
- Test adequately: Verify material quality and construction accuracy
Final Thoughts
The choice between plinth beams and tie beams—or using both—isn’t just a technical decision. It’s a commitment to structural safety, project success, and professional excellence.
Remember: Every beam you design carries not just structural loads, but also the trust placed in your engineering judgment. Make that choice count.
Quick Reference Guide
Emergency Decision Matrix
Condition | Plinth Beam | Tie Beam | Both |
Flood-prone area | Required | Optional | Recommended |
Seismic Zone IV-V | Optional | Required | Recommended |
Soft soil | Recommended | Required | Best choice |
Load-bearing walls | Required | Optional | Good practice |
High water table | Required | Optional | Recommended |
Industrial building | Optional | Required | Good practice |
Discover more from
Subscribe to get the latest posts sent to your email.
