Podium Slabs Explained – Smart Design, Real Uses & Construction Tips

As urban landscapes evolve, the need for integrated multi-use structures is growing rapidly. Whether it’s combining commercial retail with residential apartments or fitting parking below office towers, one key structural element makes this possible: the podium slab.

What is a Podium Slab?

A podium slab is a thick reinforced concrete

typically located at or near ground level. It serves as a structural platform that separates the lower section of a building — usually parking or commercial space — from the upper section, which might be residential, hotel, or office floors.

It acts as a transition and load transfer zone, enabling different structural systems and functions above and below.

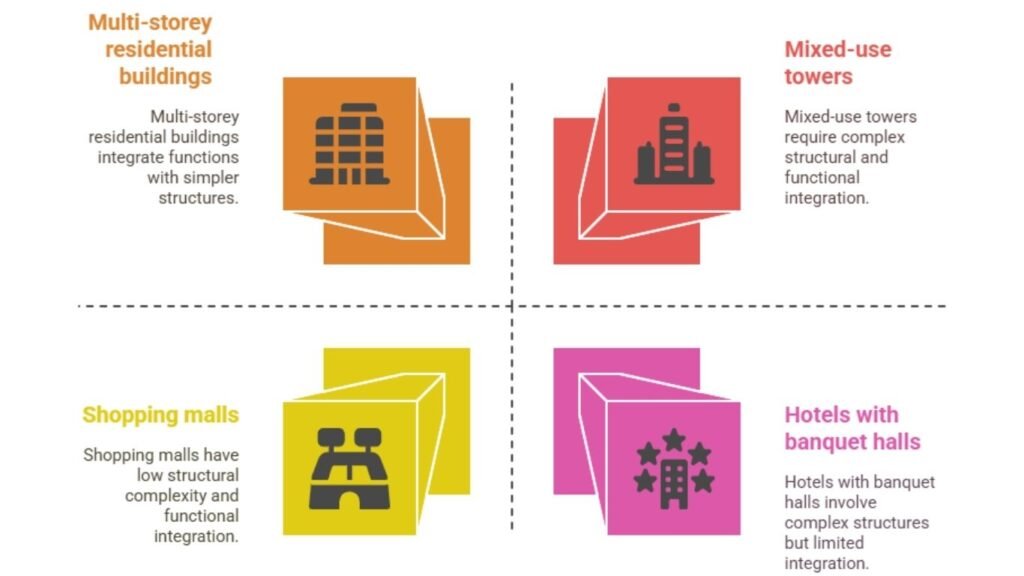

Where Are Podium Slabs Used?

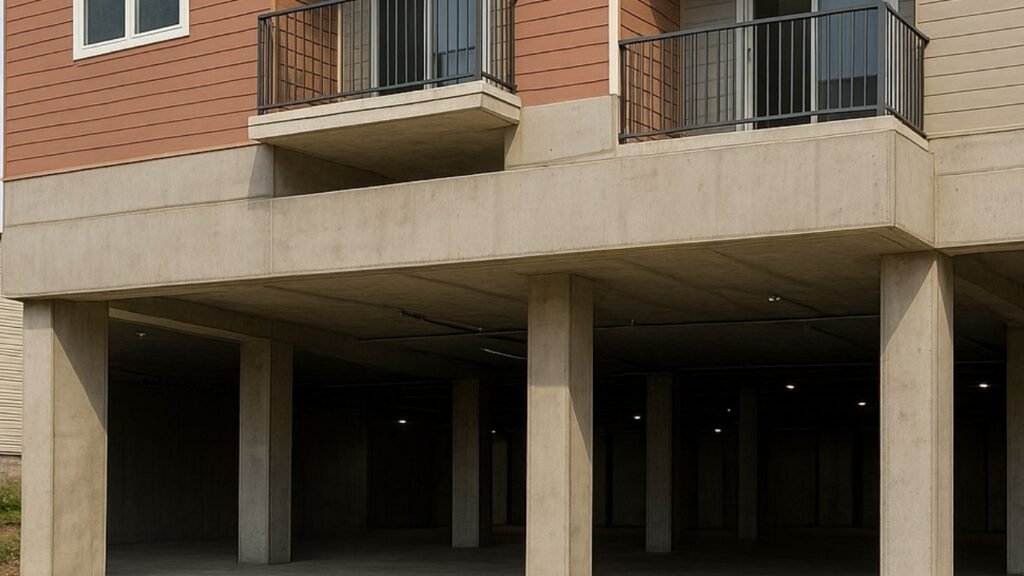

• Multi-storey residential buildings with basement or ground parking
• Mixed-use towers combining retail, offices, and homes
• Hotels with banquet halls or restaurants on lower floors
• Shopping malls with service or parking areas below
• Institutional campuses and hospitals with open ground areas

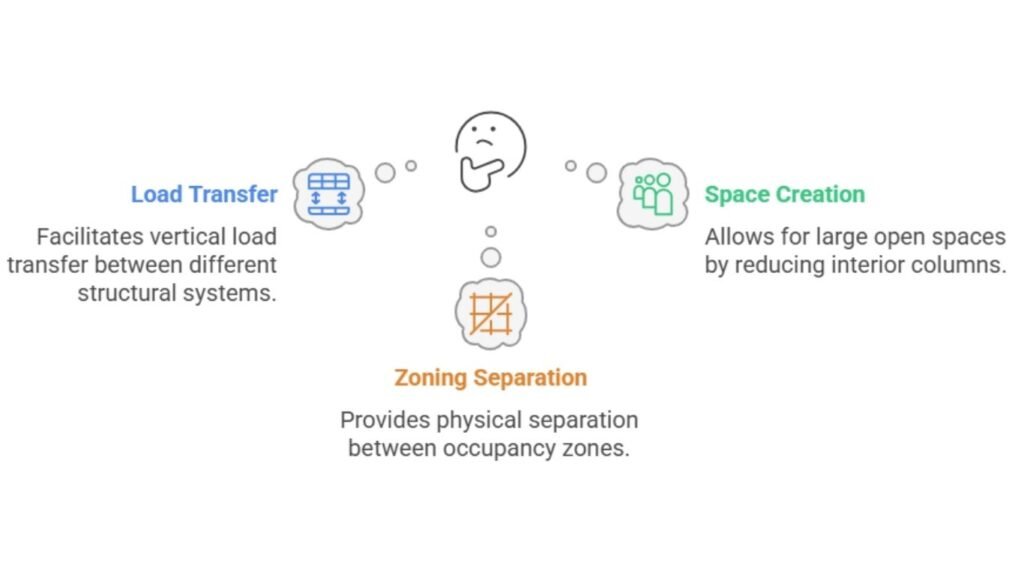

Why Podium Slabs Are Critical in Building Design

1. Load Transfer Function

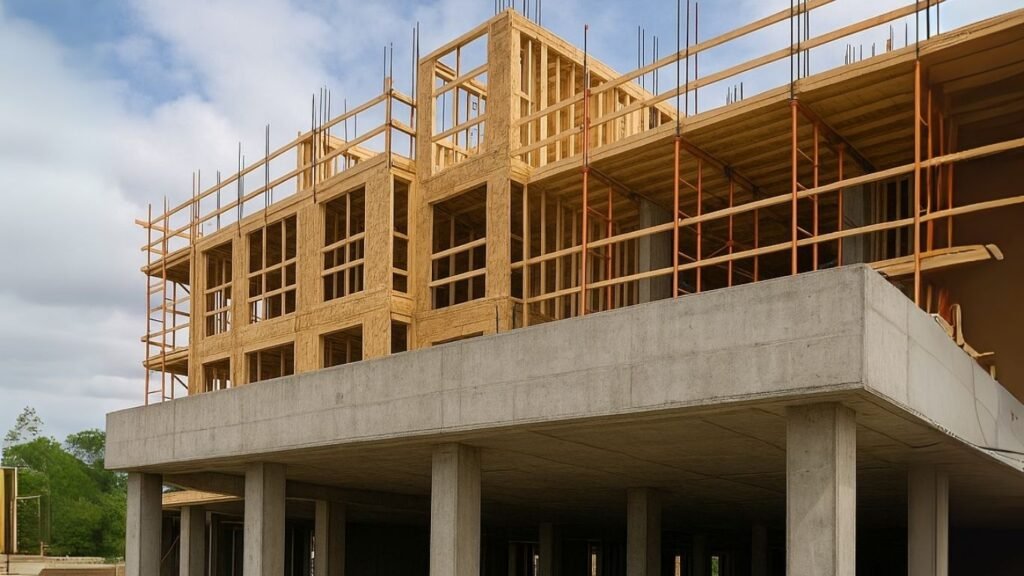

Upper floors are often designed using different column grids or lighter materials (steel or wood), whereas lower floors may use RC columns or shear walls. A podium slab transfers vertical loads between these mismatched systems.

2. Space Creation Below
By using deeper slabs and stronger reinforcement, designers can reduce or eliminate interior columns below — allowing for large open spaces ideal for parking, retail shops, or lobbies.

3. Zoning Separation
Podium slabs serve as physical dividers between occupancy zones (e.g., noisy or vehicle zones below and quiet residential areas above), often satisfying fire-rating and sound-insulation standards.

Typical Construction Details

Parameter	Practical Range
Slab Thickness	220 mm to 350 mm
Concrete Grade	M30 to M40
Reinforcement	Double mesh or post-tensioned cables
Span	6 to 14 meters
Slope for Drainage	1:80 (integrated in casting)
Live Load Design	3–5 kN/m²
Fire Rating	2–3 hours standard (per IS 1642 / NBC)

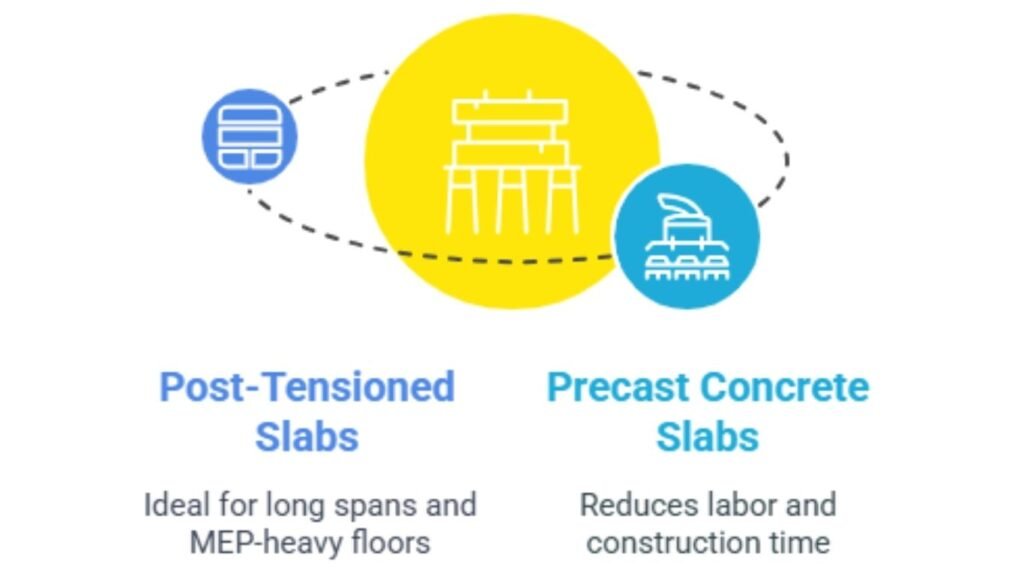

Types of Podium Slabs (Construction Methods)

1. Post-Tensioned (PT) Cast-in-Place Podium Slabs

• Used where longer spans (10–14 m) and minimal depth are needed.
• Tendons are tensioned after concrete cures (typically 7 days).
• Ideal for buildings with MEP-heavy lower floors due to flat soffit.
• Reduces number of columns and excavation depth.

2. Precast Concrete Podium Slabs

• Slabs are cast in a factory, cured, and lifted into place on-site.
• Reduces labor and construction time.
• Ideal for modular projects or where speed is critical.
• Requires crane access and precise coordination for lifting and fixing.

Key Construction Considerations (From Site Viewpoint)

A. Formwork and Casting

• Use robust shuttering to support heavy loads and thick slabs.
• Ensure adequate support spacing to avoid deformation.
• Place sleeves and openings in advance to prevent rework later.

B. Reinforcement and Tendon Layout

• Reinforce column zones (negative moments) with denser bars.
• Maintain proper cover (50–75 mm) especially for exposed soffits.
• In PT slabs, keep tendons in draped profile to resist bending.

C. Joint and Crack Control

• Provide expansion joints every 30–45 meters.
• Use shrinkage joints near walls, upstands, and staircases.
• Place dowel bars for transfer across movement joints.

Podium Slab as a Transfer Slab

Often, the column or wall locations in the floors above don’t match the structural elements below. In such cases, the podium slab redistributes concentrated loads across its surface.

Practical Measures:

• Increase slab thickness near heavy columns
• Introduce drop panels or deep beams
• Use FEM software for accurate modeling
• Ensure sufficient punching shear reinforcement at critical points

Waterproofing and Drainage Strategy (On-Site Tips)

A common site failure in podium slabs is leakage from above into parking or commercial areas. Here’s how to avoid it:

• Provide minimum 1:80 slope in the slab casting itself — don’t rely on floor toppings alone.
• Use two-stage waterproofing: primer + membrane + screed.
• Apply upstand protection at walls, pipe penetrations, and lift pits.
• Test waterproofing with flood tests before laying tiles or hard finishes.
• Install proper drainage — trench drains, floor outlets, overflow spouts.

Podium Slab vs Normal Slab – Practical Differences

Feature	Podium Slab	Regular RCC Slab
Thickness	220–350 mm	100–150 mm
Span	Up to 14 m (PT)	3–6 m
Load Transfer	Critical	Minimal
Fire Rating	2–3 hrs	1–1.5 hrs
Waterproofing	Mandatory	Only on roof slabs
Reinforcement	Dense steel / PT	Standard steel only

Site Challenges and How to Solve Them

Challenge	Site Solution
Leakage through slab	Ensure full flood test + drainage slope built-in
Rebar congestion at column zones	Use layered placing with spacers or staggered bars
Shuttering failure due to slab depth	Use tight propping (max 600 mm c/c) and staggered stripping
Cracks due to shrinkage	Add fiber reinforcement and cut control joints early
MEP clash with beams	Use flat slab or PT slab to eliminate downstand beams

Real-Life Application: Case Study

Project: Residential Tower over Commercial Base
Location: Mumbai, India
Podium Slab Setup:

• Thickness: 300 mm PT slab
• Spans: 11 m between columns
• Concrete Grade: M35
• Fire Rating: 3 hours
• Waterproofing: PU Membrane + screed
• Application: Ground floor retail + 6-storey residential tower
• Result: Crack-free, leak-proof slab with efficient MEP integration.

Execution Best Practices

• Engage a structural and waterproofing consultant during planning.
• Include all pipe sleeves and conduits in reinforcement drawings.
• Use BIM modeling to check for service clashes and slab openings.
• Always test waterproofing with flood tests before finishes.
• Maintain proper curing cycles (minimum 14 days) to avoid early cracking.

Conclusion: Why Podium Slabs Matter

Podium slabs are not just thicker concrete floors — they are multi-functional engineering solutions that make modern building layouts possible. They allow architects to mix parking, retail, and residential uses, while giving engineers the flexibility to change structural systems mid-way up a building.

With proper detailing, accurate load analysis, and professional waterproofing, podium slabs enhance safety, usability, and the lifespan of the entire structure.
