Why Dual-Rib Arch Bridges Are Redefining Modern Infrastructure

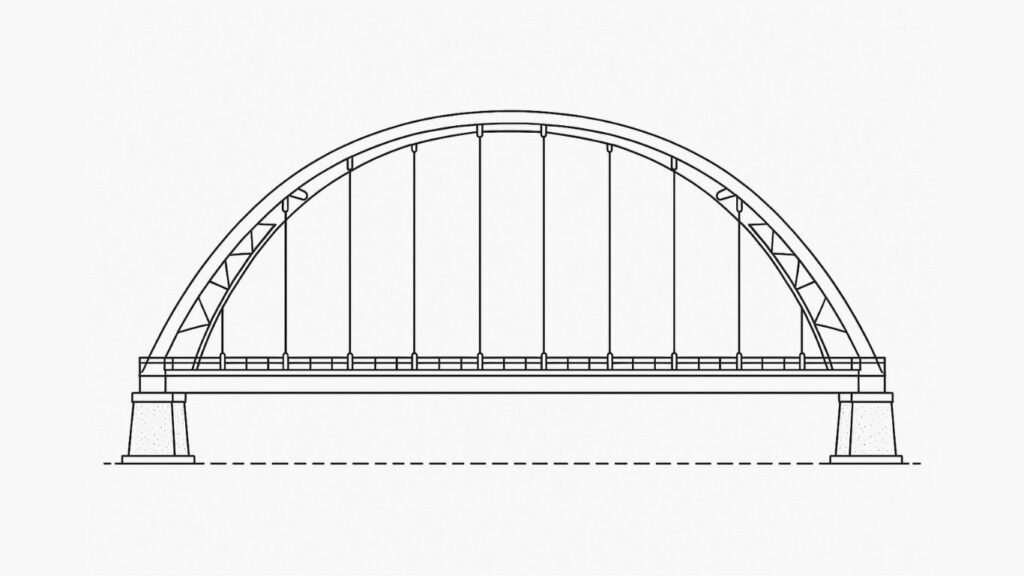

A dual-rib arch is a modern structural form defined by two parallel curved members—known as ribs—connected by a network of transverse elements. Together, these elements create a braced, stable system that effectively resists loads through compression, while offering improved lateral stability. This setup differs from traditional single-rib or solid arches by providing a more efficient load path, increased redundancy, and greater architectural freedom.

What truly sets this design apart is not just the addition of another rib, but the space between them and the structural dynamics it enables. These ribs are often shaped in parabolic or circular profiles and are tied together using diaphragms, beams, or cross-bracing systems. These connections help control buckling, provide stiffness, and support the suspended deck or roof—either directly or through vertical hangers and inclined struts. The dual-rib structure behaves as a composite system, distributing vertical and lateral loads across its members in a highly predictable and efficient manner.

Why It Matters and Where It’s Being Used

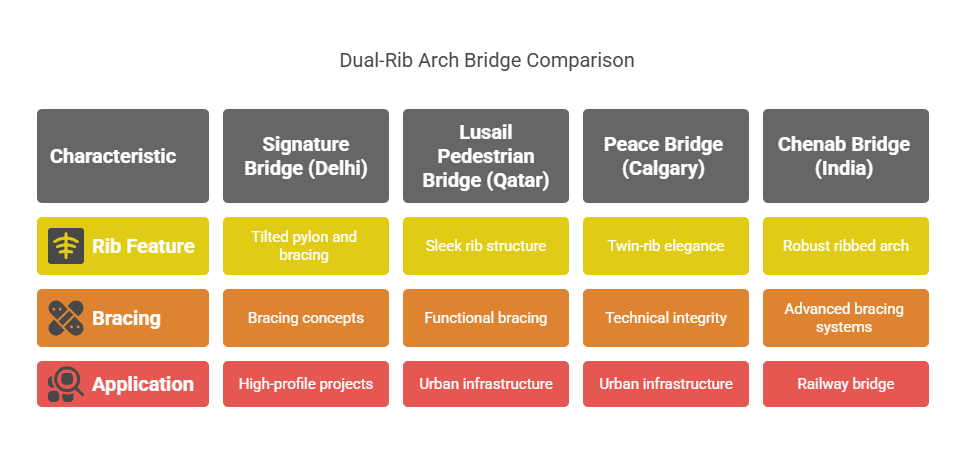

In recent years, the dual-rib arch concept has been widely adopted in bridge design worldwide, including in India. In India, while not all bridges are strictly dual-ribbed, many high-profile projects incorporate similar principles. The Signature Bridge in Delhi, for instance, employs a tilted pylon and bracing concepts reminiscent of dual-rib stability to enhance its performance. Internationally, notable examples include the Lusail Pedestrian Bridge in Qatar, known for its sleek rib structure and functional bracing, and the Peace Bridge in Calgary, which showcases twin-rib elegance with technical integrity. Additionally, the Chenab Bridge in India, the world’s highest railway bridge, exemplifies robust ribbed arch construction with advanced bracing systems to ensure stability under extreme wind and seismic conditions.

These designs are especially favored in urban infrastructure for footbridges, overpasses, and public walkways—where aesthetics, lightness, and strength must all be balanced. The openness of the design allows for light penetration, reduced material usage, and striking visual profiles that integrate well into urban environments.

Structural Behavior and Technical Considerations

From a structural engineering perspective, spacing the ribs apart increases both in-plane and out-of-plane stiffness. This enhances overall stability and reduces the risk of lateral-torsional buckling, especially critical in long-span bridges made of steel. The ribs are typically fabricated using I-girders, tubular sections, or closed box sections, depending on span length, material availability, and design criteria.

In concrete structures, prestressing or post-tensioning techniques are used to form seamless arches with minimized weak joints. Cross-bracing between the ribs not only helps resist wind and seismic forces but also serves practical functions—like allowing inspection pathways, housing service ducts, or even creating secondary pedestrian lanes.

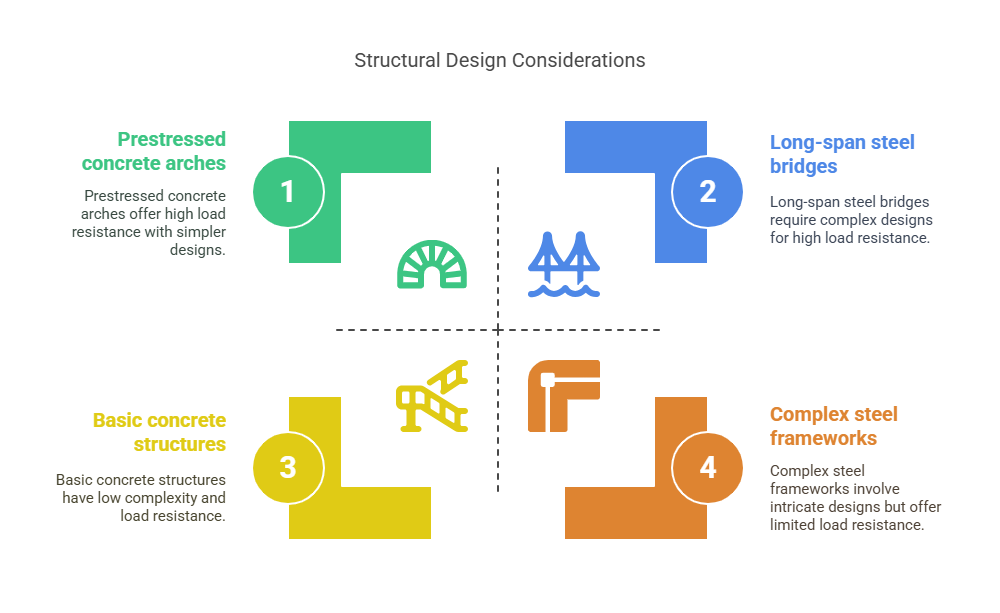

Structural Design Considerations

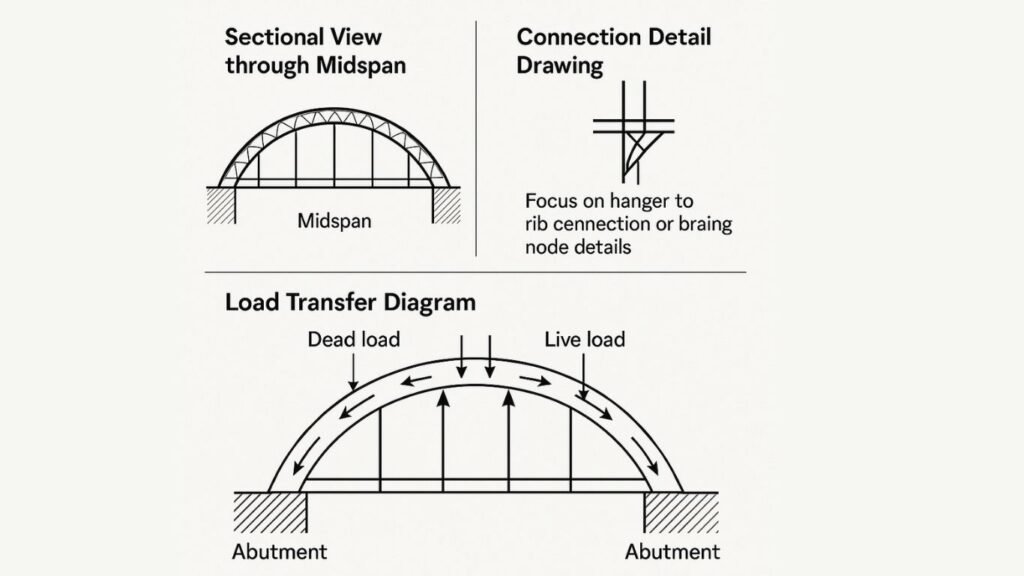

Load transfer is straightforward: the deck supports the applied loads from vehicles or pedestrians, which are then passed onto the hangers or struts and into the ribs. These loads are resolved into horizontal thrusts at the base, typically handled by robust abutments or, in the case of tied arches, by tension members that eliminate the need for massive foundations.

Elegant dual-rib arch bridge with visible hangers and bracing

Performance in Dynamic Conditions

Dual-rib arches are also excellent in dynamic environments. Their configuration allows multiple load paths, improving redundancy in case of local failures. Their geometry supports the integration of dampers, isolators, or energy dissipation systems—crucial in zones exposed to high winds or seismic activity. This makes them well-suited for areas like the Himalayan foothills or coastal cities, where safety and performance under extreme conditions are non-negotiable.

Construction, Maintenance, and Limitations

Another key advantage is the ease of prefabrication and modular assembly. Ribs can be fabricated off-site, delivered in segments, and then erected quickly using cranes. Temporary supports maintain position until the cross-bracing is fixed, streamlining timelines and reducing site disruption—especially important in congested urban settings.

However, the system does come with challenges. Precision during construction is critical. Any asymmetry between the ribs can introduce torsional forces or uneven settlements. Additionally, more material and connections mean higher initial costs and increased maintenance demands. Elements like joints, bracings, and tension members must be regularly inspected to ensure long-term reliability.

For smaller-scale or budget-restricted projects, simpler arch systems or beam-and-slab structures may prove more practical. But where durability, architectural impact, and long spans are needed, the dual-rib arch remains a top-tier solution.

Modern Tools and Sustainability

Modern software tools such as STAAD.Pro, SAP2000, and Midas Civil help engineers simulate loading conditions, optimize materials, and validate performance against global codes such as Eurocode, AASHTO, and Indian Roads Congress (IRC) standards. These platforms allow engineers to push the limits of design while ensuring safety and sustainability.

The dual-rib system also supports green building principles. Its open frame allows better air and light movement, reduces material wastage, and supports deconstruction or reuse—important features for future-ready infrastructure.
