What Is Characteristic Compressive Strength of Concrete? IS 456:2000 Explained

Concrete doesn’t always behave the same way—even when mixed correctly. Factors like aggregate shape, sand moisture, or site conditions can cause strength to vary. To address this, the characteristic compressive strength of concrete as per IS 456:2000 sets a benchmark for minimum strength that most test results must meet. It’s a reliable way to ensure that concrete on-site performs as expected, even with natural variations in materials.

What is Characteristic Compressive Strength?

According to IS 456:2000, characteristic compressive strength (denoted as fck) is the value below which not more than 5% of the test results are expected to fall. In simple terms, 95% of cube samples should achieve at least this strength. The grades of concrete, such as M20, M25, and M30, refer directly to their characteristic strength. For example, M20 concrete has a characteristic compressive strength of 20 N/mm².

This definition accounts for the natural variation that occurs in materials and workmanship, ensuring that even when slight inconsistencies arise, the concrete maintains the structural integrity required by design.

Why Does Concrete Strength Vary?

Concrete is a heterogeneous mixture of cement, fine aggregates, coarse aggregates, water, (C+FA+CA+W) and sometimes chemical admixtures. Its compressive strength can vary due to several reasons:

• Variations in aggregate size and shape
• Differences in water-cement ratio
• Fluctuations in temperature or humidity during curing
• Poor compaction or vibration
• Manual batching or measuring errors

These variations are inevitable on construction sites and highlight the importance of statistical evaluation and proper quality control procedures.

Measuring Strength Variation: Standard Deviation and Coefficient of Variation

To measure and control strength variation, IS 456:2000 uses statistical tools:

Standard deviation (σ): This represents how much the test results deviate from the average (mean) value. A smaller standard deviation indicates better consistency.

Coefficient of Variation (CV): This is the ratio of standard deviation to the mean strength and provides a normalized measure of variability.

Formula:
Coefficient of Variation (CV) = Standard Deviation / Mean Strength

In well-controlled construction practices, the coefficient of variation typically ranges between 0.01 and 0.02. A lower CV implies higher consistency and quality control.

Cube Strength Testing (as per IS 516)

The compressive strength of concrete is assessed by casting and testing cubes of size 150 mm × 150 mm × 150 mm. These cubes are cured for 28 days and then tested using a compression testing machine until failure.

Key points:

• The load applied is increased gradually until the cube fails.
• The compressive strength is calculated by dividing the failure load by the cross-sectional area.
• The result is expressed in N/mm² and rounded to the nearest 0.5.
• A test sample includes three specimens, and their average strength is taken as the final result for that sample.

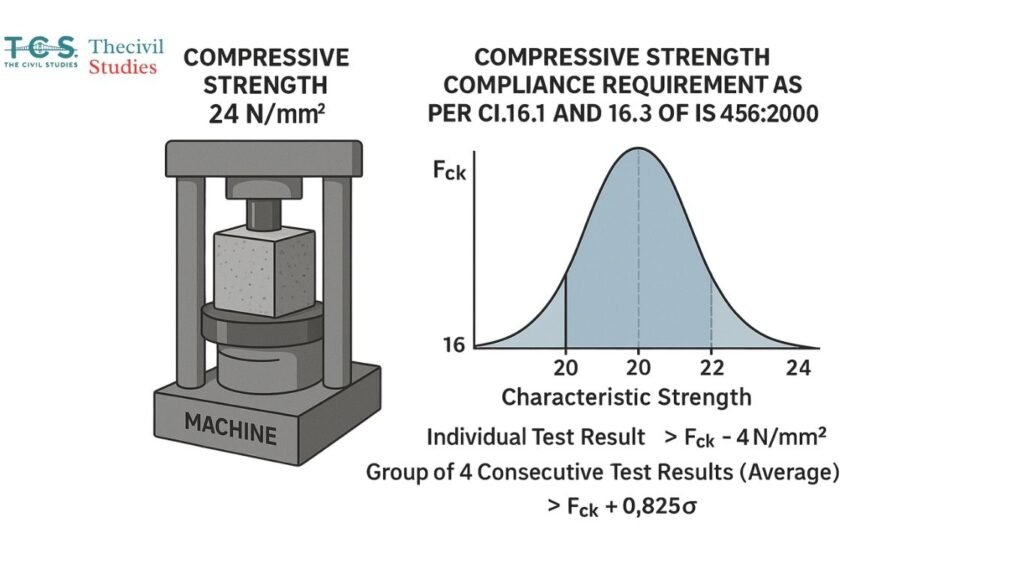

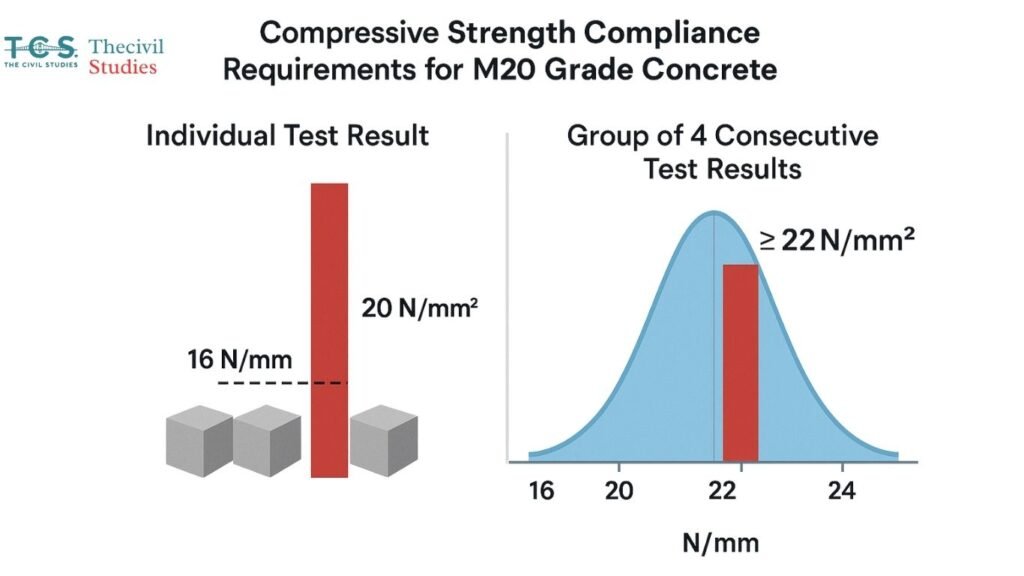

Acceptance Criteria as per IS 456:2000 (Clause 16.1 and 16.3)

Clause	Criteria	Requirement	Example for M20 Grade (fck = 20 N/mm², σ = 2 N/mm²)
Clause 16.1	Individual Cube Test Result	Must be ≥ fck – 4 N/mm²	20 – 4 = 16 N/mm² Any result below this is unacceptable.
Clause 16.3	Average of 4 Consecutive Test Results	Must be ≥ the greater of the two values below:
		1. fck + 0.825 × σ (rounded to nearest 0.5 N/mm²)	20 + 1.65 = 21.65 → 22 N/mm²
		2. fck + 4 N/mm²	20 + 4 = 24 N/mm²
		Final Acceptable Average = Higher of the two = 24 N/mm²	The average of 4 results must be ≥ 24 N/mm²

What if a Cube Test Fails?

A failed result does not automatically mean the concrete is unfit for use. Before rejecting a batch, the following steps are recommended:

1. Verify the curing and testing process for any errors or anomalies.
2. Retest remaining specimens (if available).
3. Extract core samples from the actual structure and test them for compressive strength.
4. Perform non-destructive testing (NDT) such as rebound hammer or ultrasonic pulse velocity.
5. Consult a structural engineer for further analysis and decisions based on structural safety margins.

Importance of Characteristic Strength in Construction

The concept of characteristic compressive strength is essential for:

• Ensuring structural safety despite minor on-site variations
• Designing with confidence under limit state or working stress methods
• Verifying quality during construction using a standardized procedure
• Avoiding premature rejection or unnecessary dismantling of concrete

It acts as a statistical safety net, reflecting real-world variability while maintaining performance integrity.

Conclusion; The characteristic compressive strength of concrete, as defined by IS 456:2000, is a foundational concept in modern construction. It ensures that despite unavoidable fluctuations in raw materials or execution, the structural concrete used in buildings and infrastructure will meet its design strength.

By understanding the statistical principles behind this standard and following the acceptance criteria carefully, engineers and site managers can maintain both quality and safety without over-relying on perfect conditions.
