Concrete forms the backbone of modern infrastructure in India. From residential buildings to bridges, its application is widespread—and to ensure safety, durability, and consistency in concrete construction, IS 456:2000 was introduced by the Bureau of Indian Standards (BIS).

This code isn’t just a document or a PDF. It’s the standard reference guide specially for engineers and builders across the country, covering everything from materials and mix design to reinforcement detailing and quality assurance.

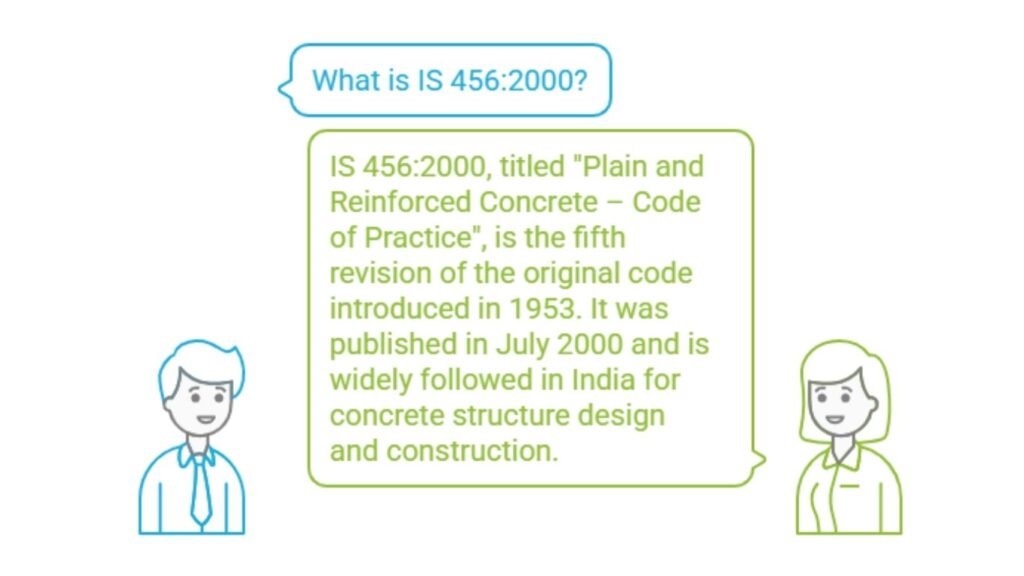

What is IS 456:2000?

IS 456:2000, officially titled “Plain and Reinforced Concrete – Code of Practice”, is the fifth revision of the original code introduced in 1953. The current version was published in July 2000, and it’s still widely followed in India for the design and construction of concrete structures.

It provides technical specifications and mandatory requirements, and best practices across the complete lifecycle of concrete—from material selection to post-construction durability.

Scope of IS 456:2000

The code applies to:

• Plain concrete
• Reinforced concrete
• Prestressed concrete (limited reference only)
• Cast-in-situ and precast concrete
• Structures subjected to static or quasi-static loading

For dynamic loads like earthquakes or wind, designers must refer to IS 1893, IS 13920, and other specialized codes.

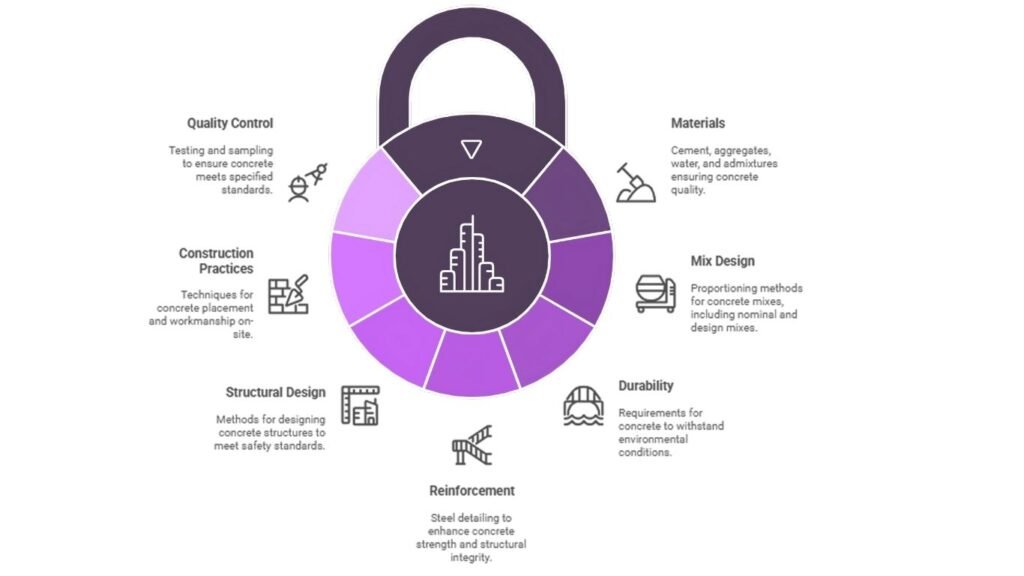

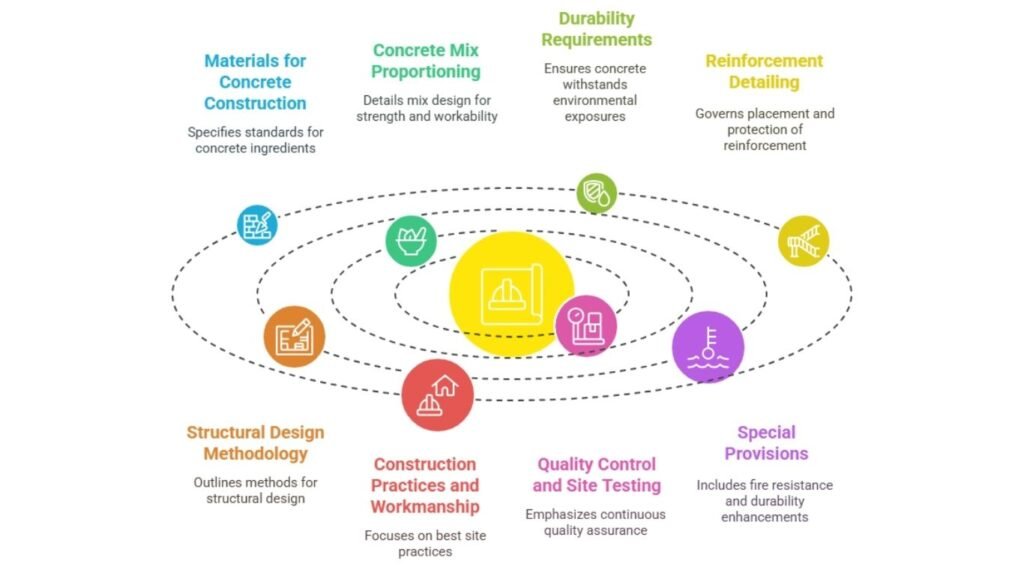

Key Sections of IS 456:2000 – Explained in Detail

1. Materials for Concrete Construction

Clause 5 – IS 456:2000

The performance of concrete depends primarily on the materials used. IS 456:2000 defines strict specifications for all ingredients used in concrete to ensure long-term durability and performance.

➤ Cement

• Must conform to IS specifications:
  • IS 269 – Ordinary Portland Cement (OPC)
  • IS 1489 – Portland Pozzolana Cement (PPC)
  • IS 8112 – OPC 43 Grade
  • IS 12269 – OPC 53 Grade
• Cement must be free from lumps and stored in dry conditions.

➤ Fine and Coarse Aggregates

• Aggregates must comply with IS 383.
• Should be clean, well-graded, durable, and free from organic impurities, silt, or clay.
• Grading of aggregates affects workability, segregation, and void ratio.

➤ Mixing Water

• Preferably use potable water.
• If non-potable, it must be tested as per IS 3025 and meet the pH and impurity limits mentioned in IS 456.

➤ Chemical Admixtures

• Should comply with IS 9103.
• Types may include plasticizers, superplasticizers, retarders, and air-entraining agents.
• Dosages should be strictly controlled as per manufacturer recommendations.

Engineering Tip: Always test material compatibility on-site before large-scale use, especially with admixtures.

2. Concrete Mix Proportioning

Clause 8 – IS 456:2000

Concrete mix design is the process of determining the right proportions of cement, aggregates, water, and admixtures to achieve the required strength and workability.

➤ Nominal Mix (up to M20)

• Fixed proportion by volume (e.g., 1:2:4 for M15)
• Suitable for smaller, non-critical structures

➤ Design Mix (above M20)

• Proportions determined through lab trials
• Considerations include target strength, aggregate shape, moisture, grading, and desired slump

➤ Water-Cement Ratio & Cement Content

• Maximum w/c ratio and minimum cement content are defined in Table 5 of IS 456, based on exposure conditions (mild to extreme).
• Lower w/c ratios improve durability but reduce workability, so plasticizers may be required.

➤ Workability

• Slump value depends on placement type:
  • 25–75 mm for mass concrete
  • 75–125 mm for reinforced sections
• Controlled by adjusting water, aggregates, and admixtures.

3. Durability Requirements

Clause 8.2 + Table 5 – IS 456:2000

Durability ensures the concrete can withstand environmental exposures without significant deterioration.

➤ Exposure Classifications

• Mild: Internal building surfaces
• Moderate: Sheltered external surfaces
• Severe: Coastal or humid environments
• Very Severe: Industrial areas, near saltwater
• Extreme: Marine zones with aggressive exposure

Each class has prescribed:

• Minimum cement content (kg/m³)
• Maximum water-cement ratio
• Minimum cover to reinforcement

➤ Importance of Curing

• Proper curing improves hydration, strength, and surface finish
• Minimum curing period:
  • 7 days for OPC
  • 10 days for blended cement
  • Extended during hot or dry conditions

Note: Inadequate curing is one of the main reasons for early-age cracking.

4. Reinforcement Detailing

Clause 26 – IS 456:2000

This clause governs how reinforcement should be placed, anchored, and protected to ensure bond strength and long-term performance.

➤ Minimum and Maximum Steel Percentages

• Slabs: Minimum 0.12% (HYSD), 0.15% (mild steel)
• Columns: Depends on load-bearing capacity and design

➤ Cover to Reinforcement

• Varies with exposure and type of member:
  • Footings: 50 mm
  • Beams: 25 mm–40 mm
  • Slabs: 15 mm–20 mm
  • Use Table 16A from IS 456

➤ Development Length (Ld)

• Ld = (φ × σs) / 4τbd
  Where φ = diameter of bar, σs = stress in bar, τbd = bond stress
• Crucial for lap splices and anchorage zones

➤ Bar Bending & Lapping

• Use bar bending schedules and stagger lap joints
• Avoid lapping at points of high stress (e.g., mid-span of beams)

5. Structural Design Methodology

Clause 18 – IS 456:2000

IS 456 permits both Working Stress Method (WSM) and Limit State Method (LSM). However, LSM is more widely adopted due to its economic and safety benefits.

➤ Limit State Method (LSM)

• Ensures both safety (limit state of collapse) and serviceability (cracks, deflections)
• Factors of safety applied to both loads and material strengths

➤ Structural Elements Covered

• Slabs
• Beams
• Columns
• Footings
• Design loads taken from IS 875 (Part 1–5)

Pro Tip: LSM gives more economical designs compared to WSM and is the industry standard today.

6. Construction Practices and Workmanship

Clause 13 – IS 456:2000

This section outlines best site practices to achieve the intended design performance.

➤ Formwork

• Should be strong, leak-proof, and stable
• Removal timing:
  • Slabs: 7 days
  • Beams: 14–21 days depending on span (refer to Table 11)

➤ Concrete Placement and Compaction

• Place within 30 minutes of mixing
• Use mechanical vibrators for full compaction

➤ Hot & Cold Weather Concreting

• In hot weather: Use chilled water, avoid afternoon casting
• In cold weather: Protect concrete from freezing, extend curing

7. Quality Control and Site Testing

Clause 15 – IS 456:2000

Quality assurance is a continuous process that begins with raw materials and extends to finished concrete.

➤ Workability (Slump Test)

• Performed as per IS 1199
• Acceptable range depends on type of work

➤ Strength Testing (Cube Test)

• Cubes tested at 7 and 28 days as per IS 516
• Acceptance as per IS 456 Table 11

➤ Sampling Frequency

• For 1–5 m³: 1 sample
• For 6–15 m³: 2 samples
• For >30 m³: 1 sample for every 15 m³ or part thereof

📘 Must Read: Concrete Testing Methods You Should Never Skip

8. Special Provisions Under IS 456:2000

➤ Fire Resistance

• Minimum cover and use of certain concrete grades for improved fire protection

➤ Architectural Flexibility

• Allows adjustment in steel layout with engineering judgment

➤ Durability Enhancements

• Use of epoxy coatings, corrosion inhibitors, or admixtures to improve life span

Why IS 456:2000 Still Matters Today

Even after two decades, IS 456 remains the most referred code in civil engineering due to its comprehensive coverage, practical guidelines, and reliability in Indian conditions.

Whether you are designing a multi-storey building, a bridge, or a simple footing, IS 456 provides a consistent framework ensuring safety, durability, and functionality.
