5 Common Misunderstandings About Plinth Beams (And What You Should Know Instead)

Why Understanding Plinth Beams Is Critical in Building Construction

Plinth beams are often underrated during construction. Positioned at the base of a building, they form a critical structural component that ties all the columns together & resists soil pressure, also protecting the building from uneven settlement, moisture, and long-term wear.

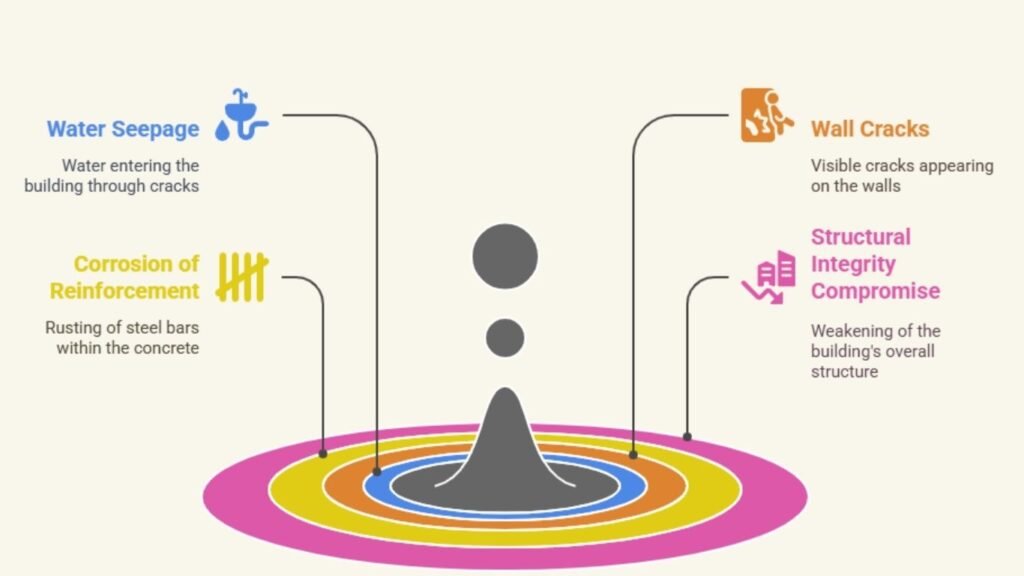

Despite their importance, plinth beams are commonly misunderstood and mishandled. Missteps at this stage can lead to water seepage, wall cracks, corrosion of reinforcement, and in severe cases, compromise the entire structural integrity of the building.

In this article, we’ll clear up the five most common misconceptions about plinth beams—with real-world insights, practical examples, and proper references based on Indian Standard Codes like IS 456:2000 and NBC of India.

1. Misunderstanding

 Plinth Beams Are Optional in RCC Structures”

Reality: Plinth beams are not optional—they are essential.

Many builders believe that plinth beams are only necessary for multi-storey structures. However, even single-storey buildings need plinth beams for proper load distribution and structural stability.

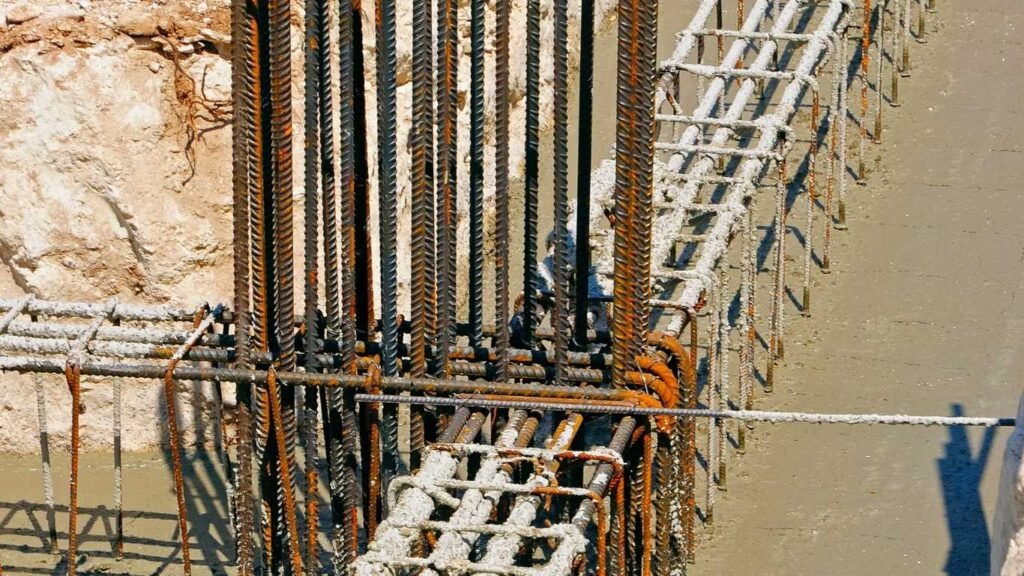

A common error on construction sites is to skip plinth beams, especially in small houses with shallow foundations. However, plinth beams are critical for load distribution and protection against differential settlement.

Technical Reason:

Purpose – A plinth beam ties all the columns together at the plinth level, making the base of the structure more rigid and reducing the chances of uneven settlement. Or

Soil movement due to moisture changes can lead to differential settlement. Without a plinth beam to tie the structure together, individual footings may settle unevenly, causing cracks in walls and tilting columns.

Site-Based Example:

In regions with black cotton soil such as parts of Madhya Pradesh and Maharashtra, buildings without plinth beams often develop structural cracks within the first two years.

Best Practice:

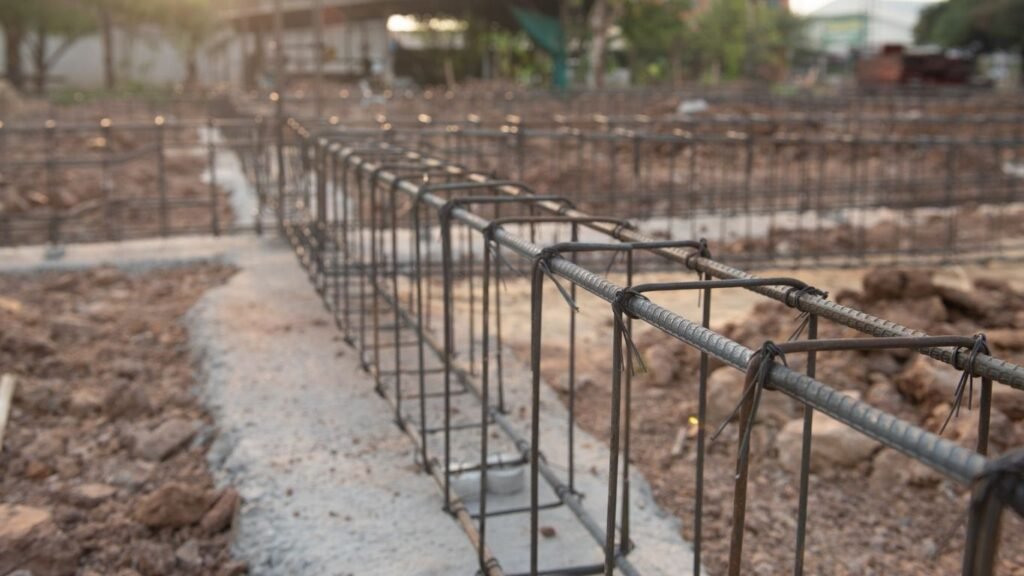

• Always provide a continuous plinth beam connecting all columns
• Especially important in expansive or soft soils
• Use minimum 10 mm bars as per IS 456:2000
• IS Code Reference, As per IS 13920, even in seismic zones, plinth beams serve as a restraint against lateral loads.

2. Misunderstanding

 “Plinth Beams Are Meant to Bear Vertical Loads”

One of the most common misconceptions is treating the plinth beam as a typical load-bearing structural member. In reality, its primary function is to provide lateral stability—not to carry significant vertical loads from slabs or floors.

Why This Is Incorrect

The plinth beam connects all columns at the base level, acting as a tie to resist soil pressure, minimize lateral movement, and ensure a uniform level for starting wall construction. It also prevents columns from spreading or shifting due to backfilling, uneven compaction, or soil expansion.

In most residential and low-rise buildings, it is not a vertical load-bearing beam. Mistakenly designing it to handle floor loads leads to inefficient use of materials and incorrect reinforcement planning.

Think of It Like This

A plinth beam works much like a tie beam, holding the base of the structure together—especially in soil that shifts or expands. It supports the lateral load from soil pressure and helps control buckling in columns due to external forces.

Common Mistakes to Avoid

• Designing plinth beams to carry slab or heavy vertical loads
• Over-reinforcing them unnecessarily, leading to wasted steel
• Ignoring key lateral load conditions such as soil pressure or trench backfill

Best Practices on Site

• Design the plinth beam for bending, shear, and torsional resistance depending on soil conditions
• Provide corner continuity, proper crank bars, and ensure adequate lap length
• Use minimum 10 or 12 mm diameter bars with correct spacing of stirrups (as per IS 456:2000)

Practical Insight

On many sites, plinth beams are overdesigned for vertical load instead of being optimized for lateral strength. Instead, engineers should focus on diagonal cracking, torsion control, and correct shear detailing, especially when the building is constructed on filled ground or soft soil.

3. Misunderstanding

“All Plinth Beams Should Be at Ground Level”

Many contractors assume that placing the plinth beam right at natural ground level saves time and cost. But this shortcut often leads to serious long-term problems such as water seepage, rising dampness, pest attacks, and even structural deterioration.

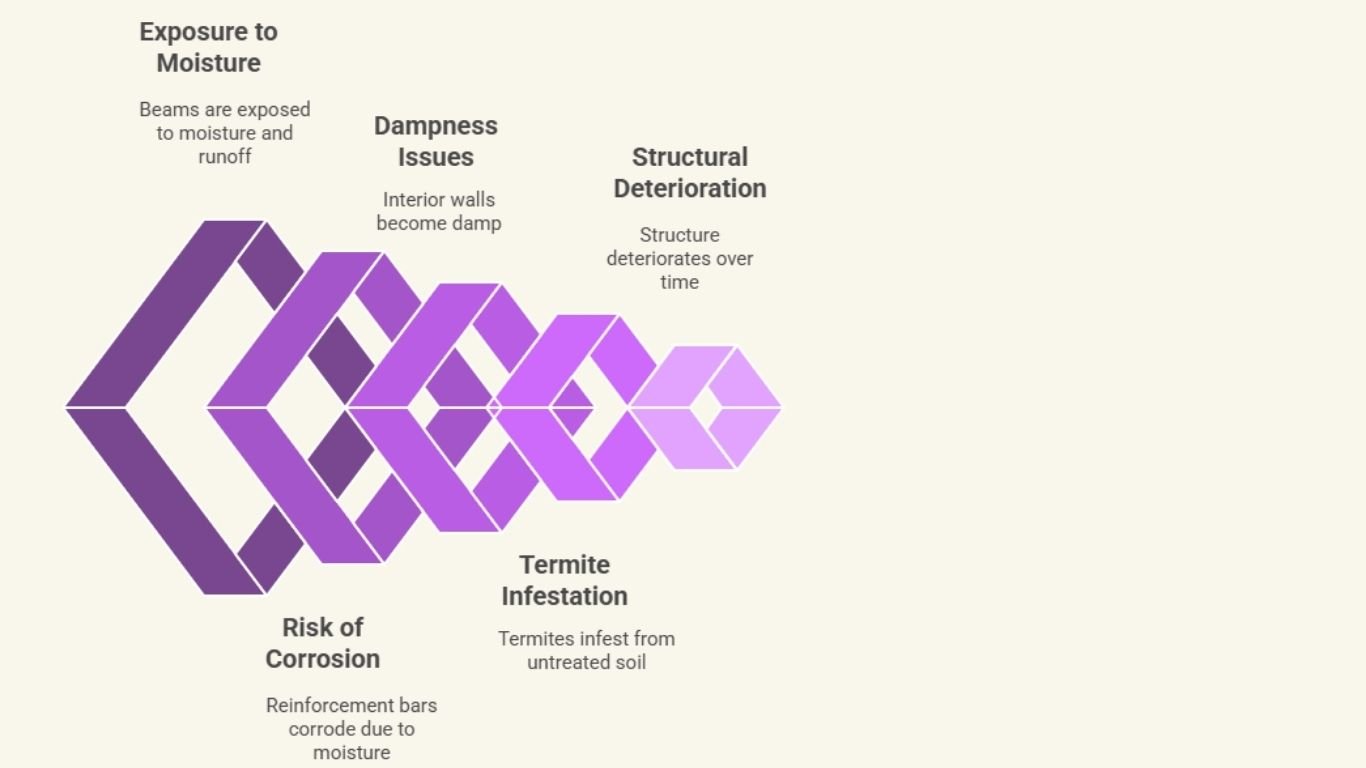

Why This Is a Problem

When the plinth beam is too close to the soil, it becomes directly exposed to moisture and surface water runoff. This increases the risk of:

• Corrosion of reinforcement bars
• Dampness in interior walls
• Termite infestation from untreated soil
• Water entering the structure during heavy rain or floods

Technical Standards to Follow

As per the National Building Code (NBC) of India, the plinth level in residential buildings should be at least:

• 450 mm above the surrounding natural ground in normal areas
• 600 mm to 1000 mm in flood-prone or water-logged regions

These standards aren’t just arbitrary—they are based on preventing water ingress, ensuring better air circulation, and improving structural longevity.

Best Practices for Execution

• Always raise the plinth beam above the highest local ground level
• Provide a proper slope around the building for rainwater to drain away
• Apply a Damp Proof Course (DPC) layer above the plinth beam before starting masonry
• Conduct anti-termite treatment on the soil before concrete placement
• Use proper backfill compaction and site grading for long-term protection

👉 What is a Damp Proof Course and why it matters

Site-Based Customization

The plinth beam height should not be fixed blindly. It should be customized based on site conditions, such as:

• Flood risk (higher plinth in coastal or low-lying zones)
• Ventilation needs (higher plinth improves airflow beneath floors)
  Slope and undulations in surrounding land
  Local drainage system effectiveness

On-Site Example

In regions like Assam, Bihar, and parts of Kerala, plinth beams are often raised 600 mm to 1 meter above ground to protect against seasonal flooding. Builders who skip this step often face major issues with floor dampness, swelling of plaster, and damage to door frames within just 1–2 years.

4. Misunderstanding

 “No Need to Provide Proper Reinforcement Detailing”

A common error on many construction sites is treating the reinforcement in plinth beams casually. Improper bar placement, use of under-diameter steel, and lack of anchorage directly affect the strength and durability of the beam.

Why This Is a Problem

Plinth beams are exposed to lateral soil pressure, shrinkage forces, and, in some cases, seismic activity. Without proper detailing, they become weak points in the structural grid, leading to:

• Cracks along the beam length
• Spalling of concrete cover
• Inadequate resistance during earthquakes or soil movement

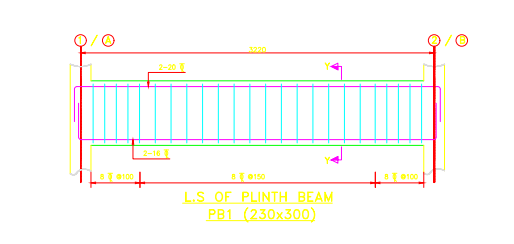

IS 456:2000 Reinforcement Requirements

To ensure structural performance, the following detailing must be followed:

• Main bars: Minimum of 4 bars – 2 at the top and 2 at the bottom (10 mm or 12 mm diameter)
• Stirrups: 6 mm dia, spaced at 150 mm c/c near supports and 200 mm c/c in mid-span
• Clear cover: Minimum 25 mm using proper concrete cover blocks
• Lap length: Minimum 50d in tension zones, properly staggered

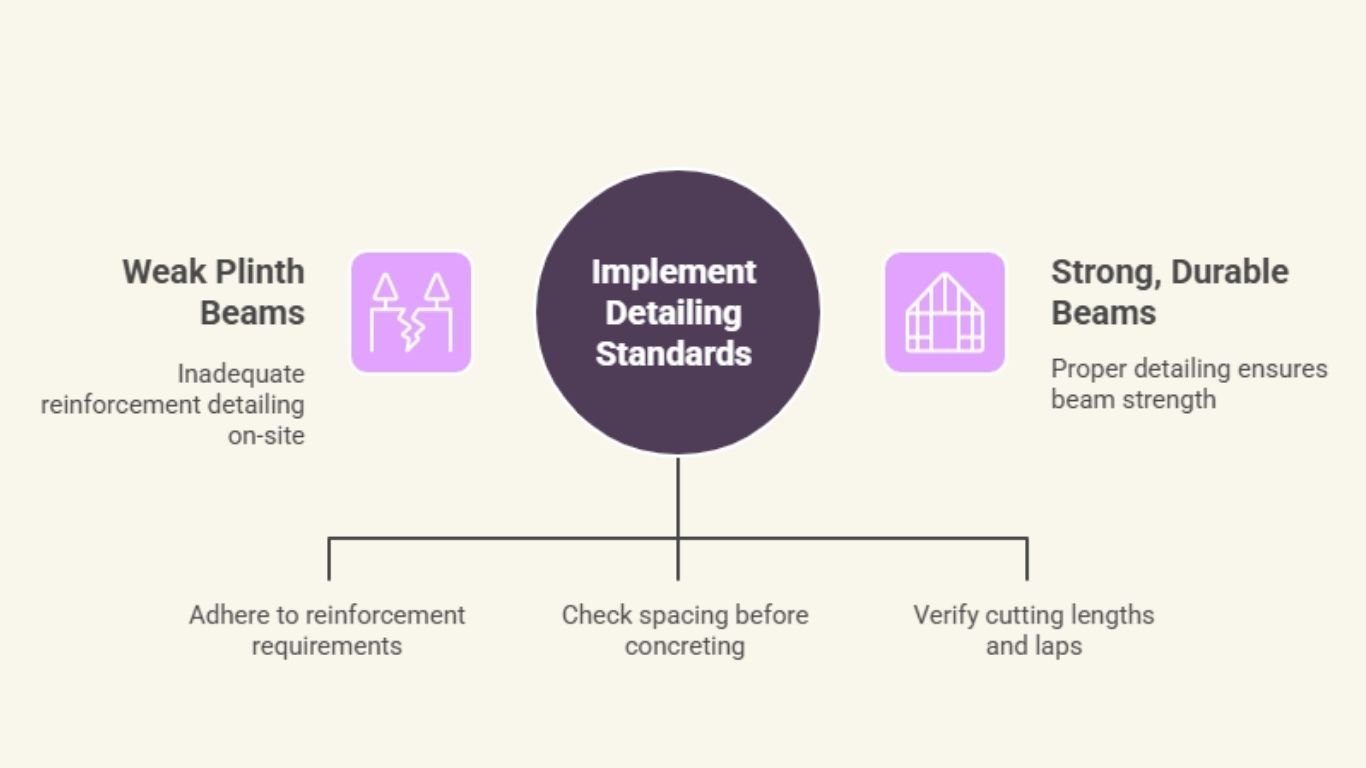

What to Check On Site

• Ensure correct bar spacing and positioning before concreting
• Provide crank bars at corners for continuity
• Use a Bar Bending Schedule (BBS) to verify cutting lengths and lap zones
• Avoid under-diameter bars (less than 10 mm) and bars without hooks or anchorage

Real-World Issue

In several poorly supervised sites, bending bars without anchorage or using 8 mm main bars leads to cracking within months. It’s also common to find missing crank bars, especially at beam-column junctions—making the structure vulnerable under stress.

👉 Read our detailed guide on reinforcement detailing

5. Misunderstanding

“You Can Construct Plinth Beams Without Formwork”

To cut costs or speed up work, some contractors skip proper shuttering and pour concrete directly into soil trenches. While this may seem minor, omitting formwork seriously affects the quality, shape, and strength of the plinth beam.

Why This Is a Major Problem

Formwork defines the geometry, alignment, and dimensional accuracy of the plinth beam. Without it, concrete seeps into loose soil, leading to:

• Contaminated concrete, which lowers overall strength
• Honeycombing, due to poor vibration and soil absorption
• Exposed steel bars, from lack of cover and displaced reinforcement
  Uneven beam shape, which affects wall alignment and structural flow

What Happens On Site Without Proper Shuttering

• The bottom of the beam may sag or narrow unexpectedly
• Soil mixes with concrete, forming weak zones
• Lack of side support causes cold joints and leakage
• Surface finish becomes rough, requiring heavy plastering later

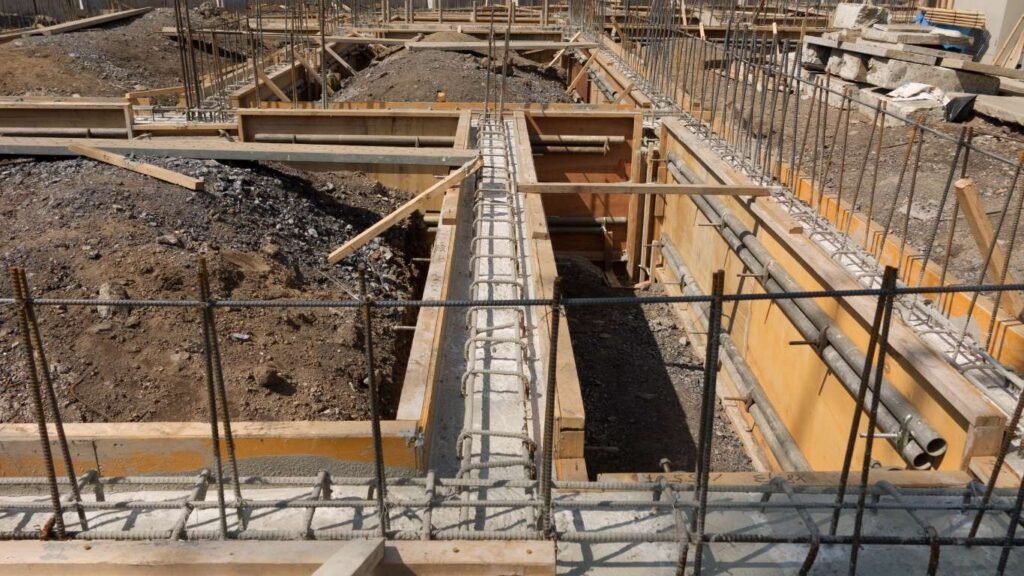

Best Practices for Plinth Beam Shuttering

• Use wooden or steel shuttering with solid supports on both sides
• Apply shuttering oil to prevent concrete sticking and allow clean removal
• Check for tight joints to prevent slurry leakage
• Ensure formwork is level and dimensionally correct before casting
• Use a needle vibrator to eliminate air pockets and ensure compaction
• Begin curing within 8 to 10 hours, and continue for at least 7–10 days

Pro Tip from Site Engineers

Before pouring, always inspect the formwork joints, vertical supports, and beam width. Confirm the steel placement is centered and the shuttering is leak-proof. A little extra attention here ensures a strong, clean, and durable beam with minimal rework.

Additional Best Practices for Plinth Beam Construction

To ensure long-term durability and structural safety, follow these important plinth beam practices during construction:

• Use M20 concrete mix (1:1.5:3) or higher as per the structural design. Always test for slump and workability before pouring to ensure proper placement and compaction.
• Start curing within 6 to 8 hours of casting. Continue for at least 7 to 10 days to achieve desired strength.
• Apply an anti-termite chemical solution to the soil before concreting, especially in tropical or termite-prone regions.
• In areas with poor drainage or high groundwater levels, place a 25 mm thick Damp Proof Course (DPC) above the plinth beam to prevent moisture penetration.
• Use only approved reinforcement bars (10 mm or 12 mm dia) as per drawing and never use under-diameter bars on site.
• Ensure formwork is properly aligned, sealed, and oiled before pouring.
• Use a needle vibrator during concreting to eliminate voids and honeycombing.
• Provide site slope away from the structure to drain surface water effectively and avoid plinth damage over time.

On-Site Checklist For Proper Plinth Beam Construction

Use this as a quick reference to ensure quality and code compliance during plinth beam execution:

Task	Specification
Concrete Grade	Minimum M20 (1:1.5:3)
Main Bars	Minimum 4 bars (2 top + 2 bottom) – 10 mm or 12 mm dia
Stirrups	6 mm dia @150 mm c/c (near supports) and 200 mm in span
Clear Cover	25 mm minimum, using concrete cover blocks
Plinth Height	Raise 450 mm or more above ground level
Termite Treatment	Apply chemical treatment to soil before concreting
Waterproofing	Provide DPC (25 mm thick) over plinth beam
Compaction	Use needle vibrator for thorough compaction
Curing	Start within 6–8 hours, continue for 7–10 days minimum

Final Thoughts

Understanding the role of plinth beams beyond textbook definitions is key to ensuring a safe, stable, and long-lasting structure. These beams are not just a construction formality—they are structural safeguards that absorb environmental stressors, bind the building at its base, and prevent future settlement issues.

Misinterpreting their purpose or skipping quality checks can lead to costly repairs, structural instability, and safety hazards down the line.
