In reinforced concrete construction, the way we join two steel bars—known as lapping—isn’t just a matter of following drawings. It directly affects the strength and service life of the structure. While lap length might look like a simple concept on paper, it’s one of the most misunderstood details on construction sites.
Errors in lap length calculation are often overlooked, but they can lead to cracks, bond failure, and even structural compromise over time. Whether you’re preparing a BBS, supervising steel fixing, or reviewing site work, it’s important to understand where these mistakes happen—and how to avoid them.

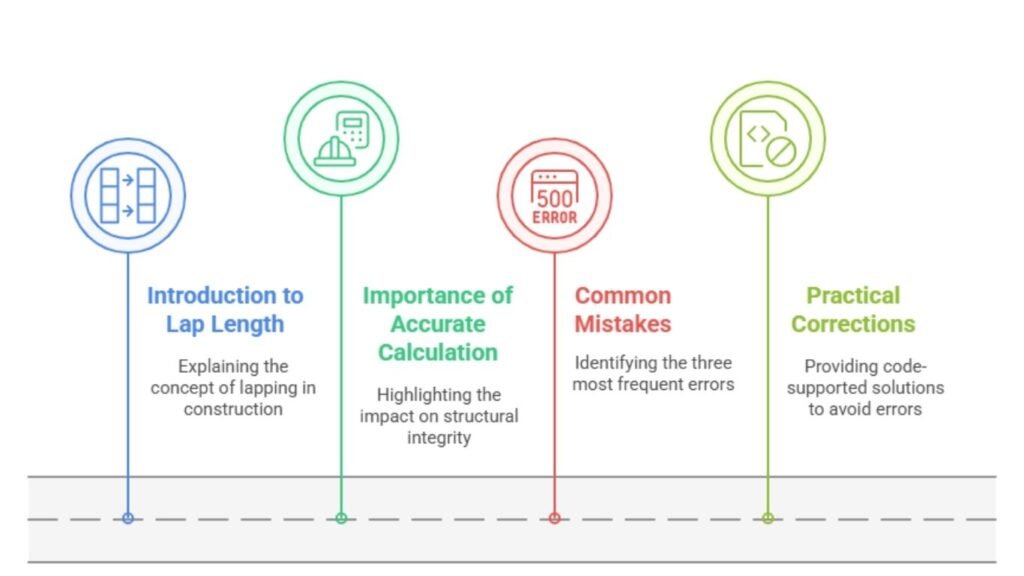

Let’s break down the 3 most common mistakes engineers and site supervisors make, along with practical, code-supported ways to do it right.

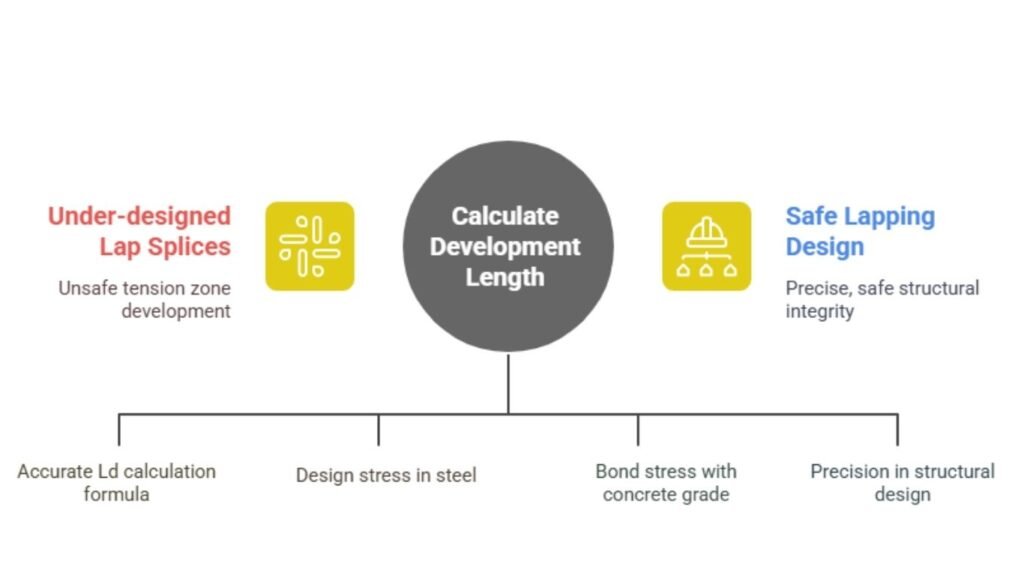

Mistake 1: Using a Fixed Multiplier (like 50d or 60d) Without Calculating Actual Development Length
Why This Is Wrong:
Many engineers and drafters casually assign 50d (where d = bar diameter) for lap length without understanding whether it’s valid for the grade of concrete, type of stress (tension or compression), or bar type (plain or TMT). This shortcut often results in under-designed lap splices—especially in tension zones.
Correct Approach:
Refer to IS 456:2000 Clause 26.2.1 for accurate Ld calculation:
Ld = (ϕ × σs) / (4 × τbd)
Where:
- ϕ = bar diameter (mm)
- σs = design stress in steel (typically 0.87 × fy)
- τbd = bond stress, which varies with concrete grade
💡 Example 1: For a 20 mm dia bar in M25 concrete and Fe500 steel:
- σs = 0.87 × 500 = 435 N/mm²
- τbd for M25 = 1.4 N/mm² (plain bar), increased 60% for deformed bars → 2.24 N/mm²
- Ld = (20 × 435) / (4 × 2.24) = approx. 970 mm
Why It Matters:
Using a blind 50d (1000 mm) might seem close—but it can result in unsafe lapping if the bar is longer or concrete cover is compromised. Always compute actual Ld for precision.
Mistake 2: Ignoring Whether the Bar Is in Tension or Compression
Common Oversight:
Lapping is applied uniformly in beams, slabs, or columns without considering the location of stresses. A bottom bar in a simply supported beam, for instance, undergoes tension, while the top bars in a continuous slab might be in compression.
What the Code Says:
- Tension Lap Length = Ld
- Compression Lap Length = 0.8 × Ld
💡 Site Example:
For a simply supported slab, the bottom bars should have a lap length of full Ld, but if you use 0.8 × Ld instead, the splice may not carry full tension, leading to premature cracking.

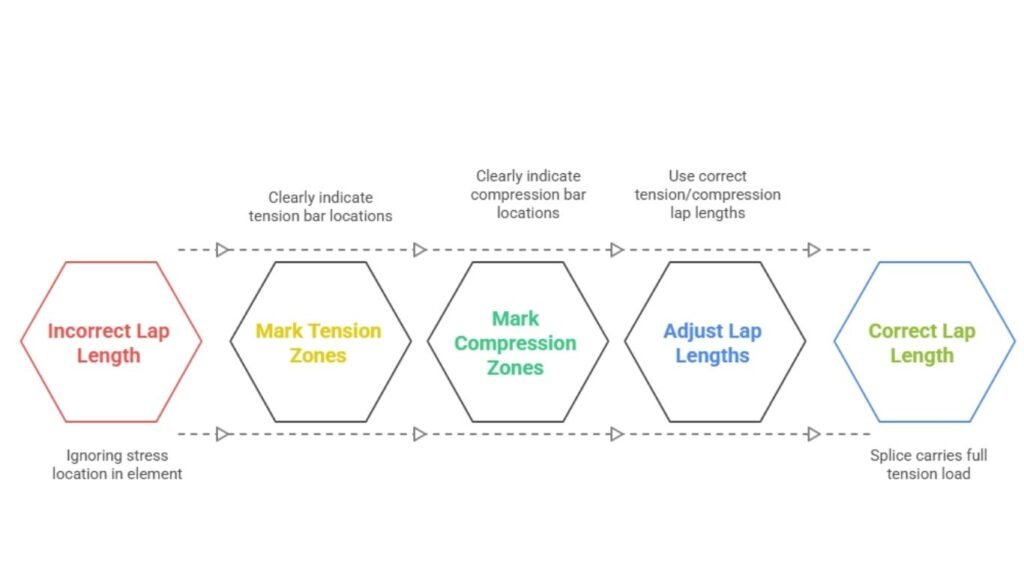

Pro Tip: When drafting or reviewing reinforcement drawings, mark tension and compression zones clearly and adjust lap lengths accordingly. Use color codes or annotations to avoid confusion on-site.
Mistake 3: Overlapping Bars in Congested Zones Without Proper Staggering or Clear Cover
Execution Flaw (Not Just Design)
Even if calculations are accurate, laps are often made in high bending moment zones, or multiple bars are overlapped at the same section—especially in slabs and beams. This leads to reinforcement congestion, poor compaction, and concrete voids.

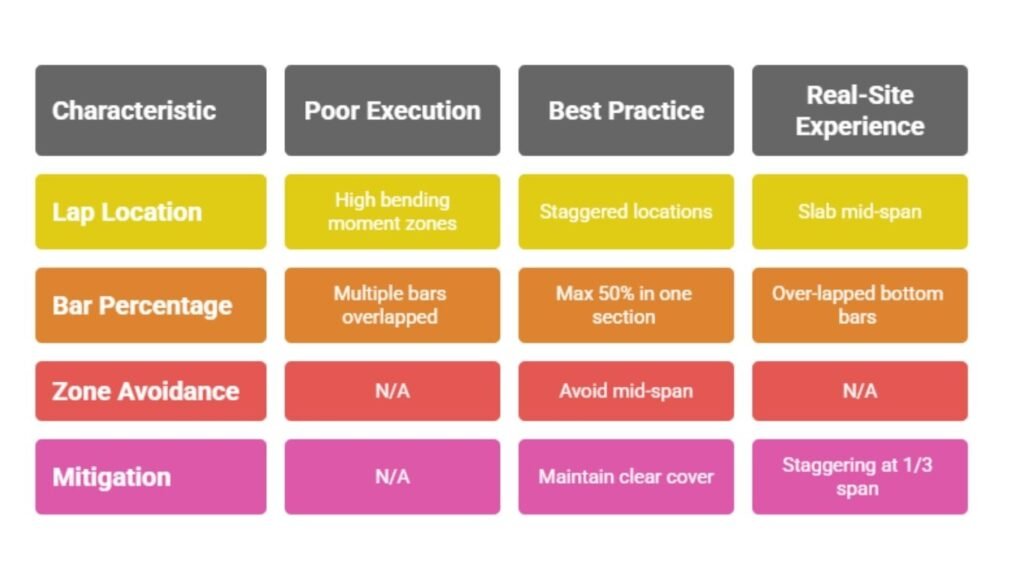

Best Practices from IS 456 & IS 13920:
- Avoid laps at mid-span (tension zone) in simply supported beams.
- Stagger laps at different locations, especially in columns and slabs.
- Maintain minimum clear cover and bar spacing.
- Never lap more than 50% of bars in one section in earthquake zones.
Real-Site Experience:
In a residential G+4 project in Mohali Punjab, India, over-lapped bottom bars in a slab mid-span caused honeycombing due to congested steel. The structure failed ultrasonic testing and required expensive grouting afterward. A simple staggering of bars at 1/3 span could’ve prevented this.
Summary: Lap Length Isn’t Guesswork—It’s a Science with Serious Impact
Here’s a quick checklist to get it right:
| Parameter | Right Approach |
| Bar diameter | Compute based on drawing and purpose |
| Concrete grade | Refer to IS 456 for τbd values |
| Bar stress (σs) | Typically 0.87 × fy |
| Tension vs Compression | Use Ld or 0.8 × Ld accordingly |
| Lap location | Avoid high moment zones; stagger bars |
| Clear cover and spacing | Always maintain minimum code-specified cover (25 mm for slabs, 40 mm for beams) |
Final Words: Let Engineering Lead, Not Assumptions
In structural design, small mistakes lead to major failures. Lap length errors can result in cracked slabs, failed columns, or rejected audits—so never treat it as a thumb-rule affair. Follow IS codes, calculate logically, and think practically like a site engineer, not just a drafter.
What is the purpose of lap length in RCC?
Lap length ensures that the stress is safely transferred between two reinforcing bars when they are placed end-to-end. It maintains structural continuity, especially in long spans where rebar cannot be supplied in a single piece.
How is lap length calculated as per IS 456:2000?
Lap length in tension = development length (Ld)
Lap length in compression = 0.8 × Ld
To calculate Ld:
Ld = (ϕ × 0.87 × fy) / (4 × τbd)
Where:
ϕ = bar diameter (mm)
fy = yield strength of steel (e.g., 415 or 500 N/mm²)
τbd = bond stress (refer IS 456 Table 21, varies with concrete grade)
Is lap length different for tension and compression zones?
Yes. In tension zones, lap length must be equal to the full development length (Ld). In compression zones, you can use 0.8 × Ld. This distinction is vital for safety and cost-effectiveness, as tension bars need more anchorage.
What are the most common site-level mistakes in lap length?
Using a fixed 50d without proper calculation
Overlapping bars in high-stress areas (e.g., mid-span of beams)
Not staggering lap joints, leading to steel congestion
Ignoring clear cover and minimum spacing between bars
Using incorrect lap length for different grades of concrete
Can we lap reinforcement bars in columns?
Yes, but with proper staggering and at suitable locations, preferably not near beam-column joints or the foundation interface. IS 13920 recommends staggering laps and limiting the number of bars lapped at a single section to avoid congestion and weak zones.
What happens if lap length is insufficient?
If lap length is too short:
The bars may slip and not develop full strength
Structural cracks may appear
There’s a high risk of bond failure
RCC members may not pass quality checks or inspections
What is the standard lap length for Fe500 steel in M25 concrete?
There’s no universal standard, but for a 20 mm dia Fe500 bar in M25 grade:
τbd = 1.4 × 1.6 = 2.24 N/mm²
Ld = (20 × 0.87 × 500) / (4 × 2.24) = approx. 970 mm
So, Lap length in tension = 970 mm, and in compression = 776 mm
(Always compute based on bar diameter and concrete grade.)
When should I use mechanical couplers instead of lap splicing?
Use couplers when:
The required lap length is too long
There’s rebar congestion in slabs, columns, or footings
Project is in a seismic zone
Construction demands higher precision and faster execution
How much overlap is required for a 16mm bar?
For Fe500 in M25 concrete:
σs = 0.87 × 500 = 435 N/mm²
τbd = 2.24 N/mm²
Ld = (16 × 435) / (4 × 2.24) ≈ 778 mm
So, Lap length in tension = 778 mm (≈ 49d)
Can I use the same lap length in beams, slabs, and footings?
Not always. While the calculation method remains the same, the placement, zone of stress, and bar arrangement vary. For example:
In slabs: avoid mid-span
In beams: lap near supports
In footings: lap near column face, but not at the bottom center
Use site-specific reinforcement detailing based on bending moment zones.
Does concrete grade affect lap length?
Yes. Higher concrete grades provide greater bond stress, which reduces required lap length. Always refer to IS 456 Table 21 to adjust your calculations based on M20, M25, M30, etc.
