Why Do Roads Deteriorate? The Complete Science Behind Pavement Failure and Cracking

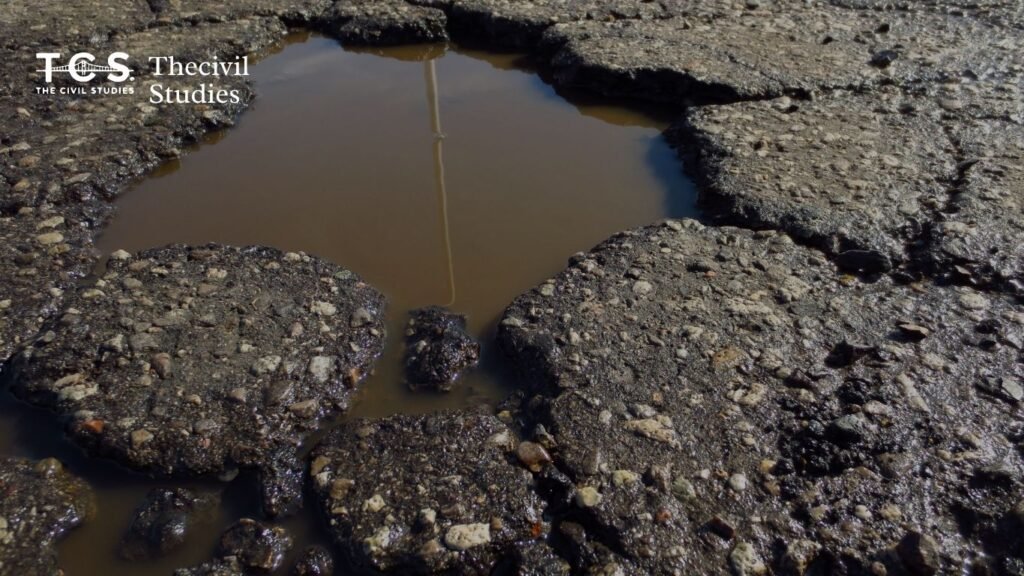

Have you ever driven over a freshly paved road and wondered why, within a couple of years, cracks, potholes, and surface deformations start to appear? The deterioration of pavement is not a mystery—it’s a result of environmental stress, material fatigue, engineering decisions, and human behavior. Understanding why roads deteriorate over time is crucial for civil engineers, road contractors, city planners, and even taxpayers.

What Is Pavement Deterioration? Pavement deterioration refers to the gradual decline in pavement performance due to physical, mechanical, chemical, or environmental stresses over time. It affects both flexible (bituminous/asphalt) and rigid (concrete) pavements.

We’ll explore the scientific reasons behind pavement deterioration, including:

• Asphalt vs. Concrete – how each material responds differently under stress and environment
• Water infiltration – how moisture enters and weakens pavement layers
• Temperature effects – expansion, contraction, and thermal cracking
• Traffic loads – the impact of repeated axle loads and heavy vehicles
• Material selection – how bitumen quality, aggregate type, and concrete mix influence durability
• Interaction of factors – how these elements combine to accelerate cracking, rutting, and overall pavement failure

How Water Causes Pavement Deterioration

The Role of Moisture Ingress and Drainage Failure

Water is one of the most destructive forces for road surfaces. Whether it’s surface water from rainfall or groundwater rising into the subgrade, moisture starts a chain of chemical and structural damage.

• Moisture Infiltration: Small surface cracks allow water to penetrate into the underlying layers (base, subbase, and subgrade). If not sealed early, this water weakens the bond between the materials.
• Freeze-Thaw Action: In colder climates, the infiltrated water freezes and expands, creating internal pressure that widens existing cracks and breaks down the asphalt or concrete surface.
• Loss of Shear Strength: Water in the subgrade reduces its bearing capacity by decreasing effective stress. This leads to rutting and surface deflection, especially in flexible pavements.
• Stripping: In asphalt pavements, moisture can cause bitumen to strip away from aggregate particles, weakening the asphalt matrix and accelerating failure.

Example: A poorly drained pavement structure built over a clayey subgrade with high plasticity index (PI > 20) is likely to experience pumping and heaving within 2–3 years, especially under repeated heavy axle loads.

Traffic Load and Pavement Fatigue

Understanding the Effects of Repeated Axle Loads

Every vehicle that passes over a road exerts a load. Over time, these loads—especially from heavy trucks—cause fatigue stress in pavement layers. Unlike occasional damage from a single heavy vehicle, fatigue is caused by the cumulative effect of thousands of load cycles.

• Fatigue Cracking (Alligator Cracks): These interconnected cracks appear due to repeated tensile stress at the bottom of the asphalt layer. As the asphalt loses flexibility, it can no longer recover after each load.
• ESAL Concept: Engineers use Equivalent Single Axle Load (ESAL) to estimate how many standard loads a pavement can handle. For example, one 80 kN axle might be equal to 4,000 car passes.
• Rutting and Depressions: Excessive axle loading causes plastic deformation in the subgrade and subbase. This results in wheel path ruts, which trap water and further accelerate damage.

Note: Flexible pavements designed for 5 million ESALs will show visible fatigue cracks if exposed to over 8 million ESALs without overlay or maintenance intervention.

Poor Drainage System

Why Drainage Design Matters in Pavement Performance

No matter how good your materials or construction quality is, if drainage is inadequate, the pavement will fail quickly.

• Surface Drainage: Proper slopes, camber, and shoulder design ensure water runs off quickly. Roads without these features allow water to stagnate, increasing infiltration risk.
• Subsurface Drainage: Perforated drain pipes, filter layers, and drainage blankets are used to redirect water away from the base and subgrade. When absent, water accumulates under the pavement, weakening the entire system.
• Capillary Rise: In fine-grained soils, water can rise into the pavement structure through capillary action, bringing with it salts that can chemically degrade cementitious materials.

Best Practice Tip: A longitudinal slope of at least 2–3% with a transverse camber of 2% is recommended for bituminous roads, as per IRC 73 guidelines.

Substandard Materials and Construction Deficiencies

A well-designed pavement can fail prematurely if the construction quality is compromised. Even slight deviations in material properties or procedures can lead to major issues.

• Bituminous Mix Design: If the asphalt content is too high, bleeding occurs. Too low, and the pavement becomes brittle and cracks early. Ideal mix requires balance between voids in mineral aggregate (VMA) and air voids.
• Compaction: Without proper compaction, density remains low. This increases permeability and reduces structural integrity. Pavement is more prone to early rutting and moisture damage.
• Aggregate Quality: Flaky or elongated aggregates reduce interlock and skid resistance. Angular, well-graded aggregates are preferred for both strength and durability.
• Concrete Mix for Rigid Pavements: Improper water-cement ratios and poor curing cause shrinkage cracks and loss of strength. Sulfate-rich water can also react with cement and weaken the slab.

Field Observation: Many rural roads built with untested bitumen from unreliable sources start bleeding within one monsoon season due to improper binder selection.

Climate and Thermal Effects on Pavement

The Role of Temperature Variations

Climate plays a major role in pavement performance. Roads must be designed to handle both average and extreme temperature ranges of their location.

• High Temperature Impact: In hot climates, bitumen softens and loses stiffness. This leads to rutting and bleeding—a glossy surface film that reduces skid resistance.
• Low Temperature Impact: In colder climates, asphalt contracts. This leads to transverse thermal cracking. Without proper low-temperature mix design, this damage can occur every winter.
• Concrete Pavement Behavior: Rigid pavements expand in heat and contract in cold. That’s why expansion joints are provided at regular intervals. Lack of proper joint spacing can cause blowups or slab cracking.

Engineering Solution: Use Polymer Modified Bitumen (PMB) in high-temperature zones and low-temperature grade bitumen (like VG-10) in colder climates for enhanced flexibility.

Natural Aging and Oxidation of Pavement Materials

Asphalt pavements naturally age due to exposure to UV radiation and oxygen. Over time, the bitumen binder becomes harder and more brittle, losing its adhesive properties.

• Oxidation: The oxidation process increases stiffness and reduces flexibility. Cracks form easily under light loading.
• Loss of Volatiles: Light hydrocarbons in bitumen evaporate, especially in high-temperature regions. This results in a dry, brittle surface prone to cracking.
• Color Change and Texture Loss: Oxidized asphalt turns grayish and loses surface texture. Skid resistance drops significantly.

Preventive Measure: Regular fog sealing or rejuvenator application can delay aging and restore bitumen flexibility in early aging phases.

Conclusion: Pavement Deterioration Is Predictable—and Preventable

Pavement deterioration is a scientific process governed by material properties, load cycles, environmental exposure, and engineering choices. Roads are not static—they’re dynamic systems that respond to every load, raindrop, and degree of temperature change.

With proper design, quality control, material selection, and maintenance planning, engineers can extend the life of road networks significantly. Understanding the root causes of road damage isn’t just about fixing potholes; it’s about designing smarter, safer, and more sustainable infrastructure.
