Ever wondered where all those pipes in your bathroom or laundry room actually go? They’re not just buried randomly — they’re carefully tucked beneath the floor using a technique known as sunken slabs. This method hides plumbing lines neatly below the floor level, keeping the area looking clean and making maintenance easier.
| Sunk depth | 230–450 mm (≈300 mm western WC, up to 450 mm Indian WC) |
|---|---|
| Waterproofing | Coat the sunk slab and walls (up to about 300 mm) before laying pipes; pond test 24–48 h |
| Filling | Brick bats / lightweight concrete / cinder — avoid heavy soil or debris |
| Top | Screed sloped to the floor trap, second waterproof layer, then tiles |
If you’re exploring different floor designs, it’s helpful to first understand the types of slabs used in construction — including how and where sunken slabs fit in.
This post will help you understand
- What a sunken slab is and why it’s commonly used
- Key tips to ensure your sunken slab is done right
- A step-by-step breakdown of how sunken slabs are constructed
- How sunken slabs compare with traditional methods in terms of cost, maintenance, and design flexibility
- The major benefits of using sunken slabs in modern homes
How Sunken Slabs Support Plumbing in Bathrooms

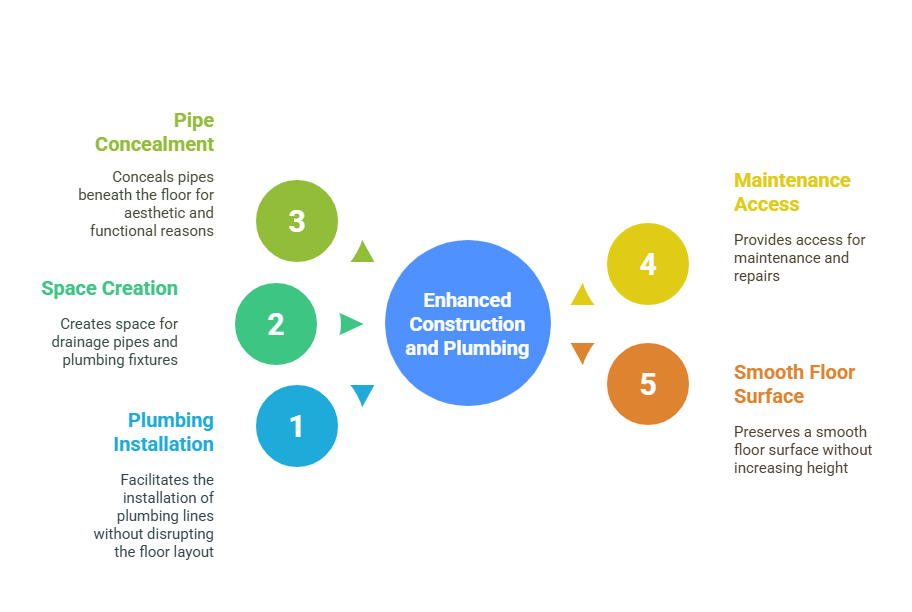

In bathrooms, toilets, and laundry areas, plumbing lines need to be installed without disrupting the floor layout. That’s where sunken slabs come in.
A sunken slab is built slightly lower than the main floor to create space for drainage pipes and plumbing fixtures. This method conceals the pipes beneath the floor while still providing access for maintenance and it can also help preserve a smooth floor surface without increasing the overall height.
These slabs are most commonly used in wet areas such as bathrooms and kitchens but can also be applied in spaces where utility lines need to be concealed.
for a better understanding of where sunken slabs stand among other slab types, you can refer to our article on types of slabs used in construction.
Important IS Codes Every Civil Engineer Should Know
Following the right IS codes is essential for maintaining quality and safety in construction work. Here are a few important codes used in masonry, concrete, and plumbing-related works:
- IS 12600: 2012 – Code of Practice for Building Materials of Masonry
- IS 456: 2000 – Code of Practice for Plain and Reinforced Concrete
- IS 3370 (Part 1 & 2): 2009 – Code for Plumbing Work: Water Supply and Drainage
To explore a full list of IS codes and how to use them on-site, visit our dedicated resource: IS Code Assistant.
Alternatives to Sunken Slabs in Bathroom Construction
Sunken slabs are a common solution in bathroom and toilet construction, used primarily to conceal plumbing lines and maintain floor levels. However, in certain projects—especially renovations, high-rise buildings, or where slab depth is restricted—sunken slabs may not be feasible due to structural limitations or added cost. In such cases, alternative construction methods can be implemented to achieve the same functionality.

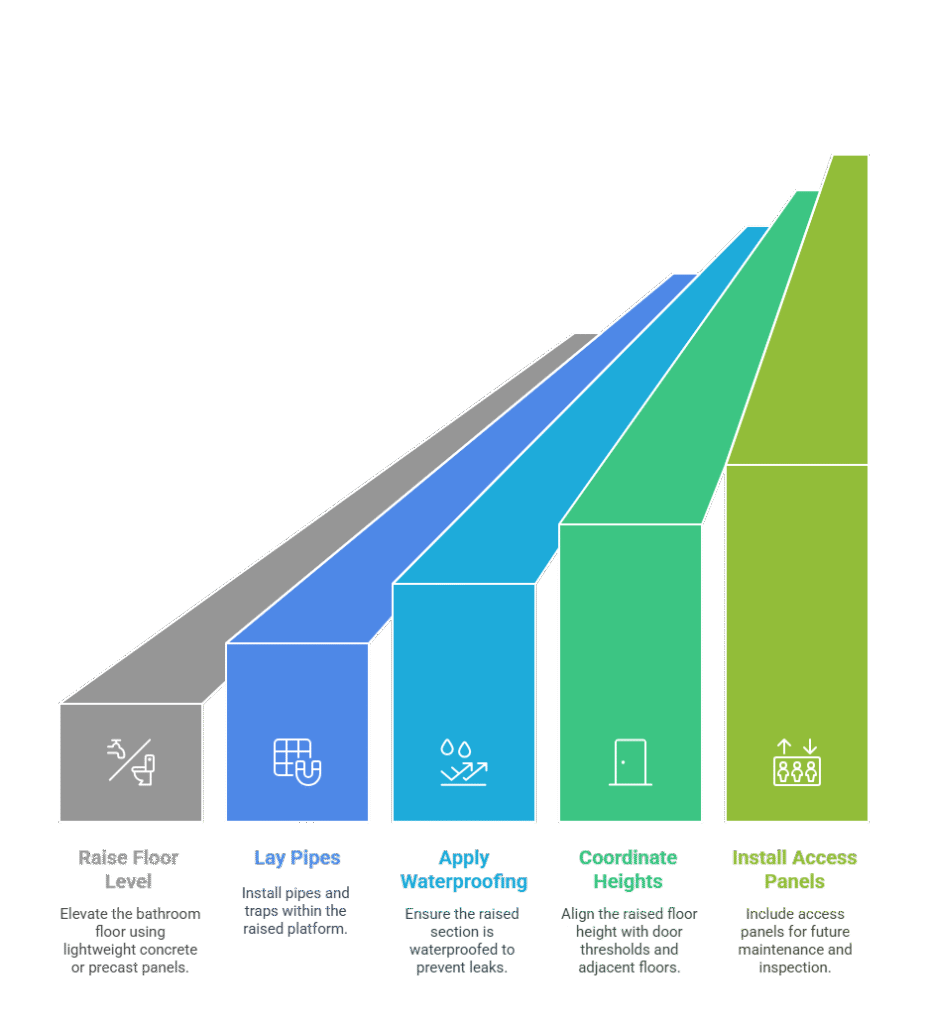

1. Raised Flooring System with Concealed Plumbing
This method involves raising the floor level of the bathroom slightly above the main slab. A minimum height of 100 mm to 200 mm is typically created using lightweight concrete or precast flooring panels, depending on load requirements and design.
Key Features
- Pipes and traps for WCs, basins, and showers are laid within the raised platform before screed or tiling.
- Ideal for retrofit projects, false ceilings below the bathroom are not required.
- Access panels can be included for future maintenance and inspection.
Important Considerations
- Must maintain a minimum slope of 1:40 for effective drainage.
- Proper water-proofing (membrane or coating) is critical to prevent leakage from the raised section.
- Raised floor height must be coordinated with door thresholds and adjacent floor levels.
2. Wall-Mounted Plumbing and Vertical Shaft Integration
Instead of concealing pipes beneath the floor, this method involves running plumbing vertically within wall chases or dedicated service shafts. Fixtures like WCs, basins, and urinals are wall-mounted, and their discharge pipes are routed through vertical ducts to the floor below or into the main soil stack.
Key Features
- Minimizes slab penetration and eliminates the need for a lowered slab.
- Allows for flexible fixture placement and easy future modifications.
- Commonly used in multi-story buildings and modular bathroom pods.
Important Considerations
- Pipe sleeves, acoustic insulation, and fire-sealing are required for vertical shafts.
- Walls must be designed to support fixture loads and chase depth.
- Adequate venting and access to inspection chambers are crucial.
3. Surface-Mounted or Exposed Plumbing (for Utility Zones)
While not ideal for main bathrooms, exposed plumbing is still a valid option in certain spaces. In this setup, pipes run along the wall surface or in shallow chases. It’s fast to install, easy to inspect, and cost-effective — especially in utility rooms or staff wash areas.
Why it works
- No digging, no slab cutting, no floor height adjustments.
- Repairs and modifications are much easier down the line.
Important Considerations
- Use rust-resistant materials in exposed sections to prevent deterioration.
- It doesn’t offer the clean finish of a concealed setup.
- Pipe layout should be planned neatly and fixed with quality brackets.
Comparison Table
| Method | Best For | Cost | Maintenance | Structural Needs |
|---|---|---|---|---|
| Sunken Slab | New builds | Medium | Moderate | Extra slab depth |
| Raised Floor | Renovations | Medium-High | Easy | Minimal changes |
| Wall-Mounted + Vertical Shaft | High-rise buildings | Medium | Easy | Wall shaft, vertical ducts |
| Exposed Plumbing | Utility rooms | Low | Very Easy | None |
What is the Standard Size of a Sunken Slab?
Understanding Standard Dimensions
The sunk depth is typically 230–450 mm (9–18 in). About 300 mm is common for bathrooms with a western WC and floor trap; up to 450 mm is used for Indian-style WCs or long pipe runs. The final depth comes from the plumbing layout — pipe size plus the fall needed for drainage.
Factors Influencing Size
- Purpose of the space (bathroom, utility room, kitchen)
- Required plumbing depth and slope
- Structural load requirements
- Local codes and regulations
Importance of Precision
Correct sizing ensures structural integrity, plumbing functionality, and proper waterproofing. Engineers tailor each slab to project-specific needs.
How Do You Calculate Sunken Slab Load?
Load Considerations
Sunken slab load includes:
- Dead Load (DL): Slab self-weight, tiles, finishes
- Live Load (LL): Weight of appliances, human usage
- Environmental Factors (EF): Earthquake, temperature, wind
Structural Analysis
Engineers use IS codes and structural design software to evaluate the slab’s performance under load. All load calculations must comply with national building codes for safety.
(If you’re not an engineer, your site contractor or structural designer will handle this — but understanding the basics helps in quality supervision.)
Advantages and Disadvantages of Sunken Slabs
Advantages Of Sunken Slab
- Creates a seamless layout for drainage and waterproofing
- Adds space beneath the floor to hide utilities
- Supports better hygiene and aesthetics
- Ensures uniform tile levels across zones
Disadvantages Of Sunken Slab
- Costlier due to additional excavation and waterproofing
- Requires expert detailing to avoid moisture issues
- Needs pre-planned plumbing layout before slab casting
Why Choose Sunken Slabs?
Sunken slabs make bathrooms and utility areas more efficient by:
- Hiding plumbing for a cleaner look
- Supporting space-saving drainage layouts
- Improving long-term maintenance access
They’re strong, reliable, and when designed well, offer excellent protection against leaks and wear.
(For example, many modern apartment projects in cities like Mumbai and Bengaluru prefer sunken slabs due to plumbing zoning standards.)
Wrapping It Up – What’s Next with Sunken Slabs
A smart bathroom or utility space isn’t just about what you see — it’s also about what’s cleverly built beneath. Sunken slabs provide a neat, efficient, and reliable way to manage plumbing and drainage in modern construction.
Whether you’re building new or renovating, understanding the role and design of sunken slabs gives you a solid start. The more informed you are, the better your space performs for years to come.
Need help deciding the best approach for your site? Contact our experts or explore our ready-to-use AutoCAD bathroom slab layouts.
FAQs
Q. 1 What is a sunken slab and why is it used?
A sunken slab is a portion of floor slab cast lower than the surrounding surface to house drainage and plumbing lines — especially in wet areas like bathrooms and toilets. It allows plumbing to remain hidden while maintaining a clean floor profile.
Q. 2 What is the standard depth of a sunken slab?
Typically between 20 to 30 cm (8 to 12 inches), but it varies based on pipe sizes and drainage slope requirements.
Q. Do I need a sunken slab in a small bathroom?
Not always. Raised flooring or vertical wall-mounted plumbing can work in compact bathrooms — especially in retrofits.
Q. 3 How do I waterproof a sunken slab?
Use a waterproofing membrane combined with protective screed. Pay close attention to pipe joints and wall intersections.
Q. 4 Can sunken slabs cause dampness or leakage?
Only if poorly waterproofed. Proper construction detailing and use of IS codes like IS 3370 can prevent issues.
Q. 5 Are sunken slabs allowed in all buildings?
Yes, but in some high-rise or seismic-prone zones, alternatives like vertical shafts may be preferred due to structural considerations.
Q. 6 What’s the difference between sunken slabs and regular slabs?
Sunken slabs are recessed below the floor level to accommodate plumbing. Regular slabs are level and require alternative methods for plumbing concealment.
