Quick Definition
What is a crank bar? A crank bar (also called a cranked bar, bent-up bar, or crank rebar) is a reinforcing steel bar that is bent at a specific angle — typically 45° — to shift the bar from the bottom tension zone at mid-span to the top tension zone near supports in RCC slabs and beams. Its purpose is to resist negative bending moments at supports, control cracking, and maintain the required effective depth of reinforcement without adding separate top bars.
What is Cranking in Construction?
Cranking in construction refers to the act of bending a reinforcement bar at a predetermined angle and height so that it changes its vertical position within the slab cross-section. The cranked portion of the bar travels diagonally through the slab depth, transitioning from the bottom zone (where it resists sagging — positive bending moment at mid-span) to the top zone (where it resists hogging — negative bending moment near supports).
This diagonal transition region is called the cranking zone — the inclined length of bar between its bottom and top positions. Understanding the cranking zone is critical for accurate Bar Bending Schedule (BBS) calculations because you must account for this additional inclined length in the total bar length.
The crank point is the exact location along the slab span where the bar begins its upward bend. As per standard practice and IS 456:2000, the crank point is placed at L/4 from the face of the support (where L = effective span of the slab). This is where the bending moment diagram crosses zero — making it the structurally correct location to shift reinforcement.
Sagging (Positive Bending Moment)
Sagging occurs when a structural member bends downward at the mid-span under applied loads.
- The bottom fibers of the slab are subjected to tensile stress
- The top fibers remain in compression
- Since concrete is weak in tension, reinforcement is provided at the bottom
Key Point:
Sagging results in bottom tension, so steel is placed at the bottom of the slab.Hogging (Negative Bending Moment)
Hogging occurs near the supports, where the slab or beam bends upward.
- The top fibers experience tensile stress
- The bottom fibers are in compression
- To resist this tension, reinforcement is provided at the top near supports
Key Point:
Hogging results in top tension, so steel is placed at the top of the slab near supports.
Importance in RCC Design
The variation of tension zones between mid-span and supports directly governs reinforcement detailing:
Supports → Top reinforcement required
Mid-span → Bottom reinforcement required
Why Crank Bars Are Used — The Structural Logic
To understand why crank bars are essential, you first need to understand where tension occurs in a slab.
Bending Moment in a Simply Supported Slab
In a simply supported slab (supported at both ends, free to deflect in the middle):
- At mid-span: The slab sags downward. The bottom face is in tension — reinforcement must be at the bottom.
- At supports: The slab is held by walls or beams. The top face develops tension due to negative (hogging) bending moment — reinforcement must be at the top.
If you only placed bars at the bottom, the top face near supports would have no steel to resist tension — leading to cracks that open on the top surface of the slab at the wall junctions. These are the diagonal and transverse cracks you commonly see in slabs after a few years.

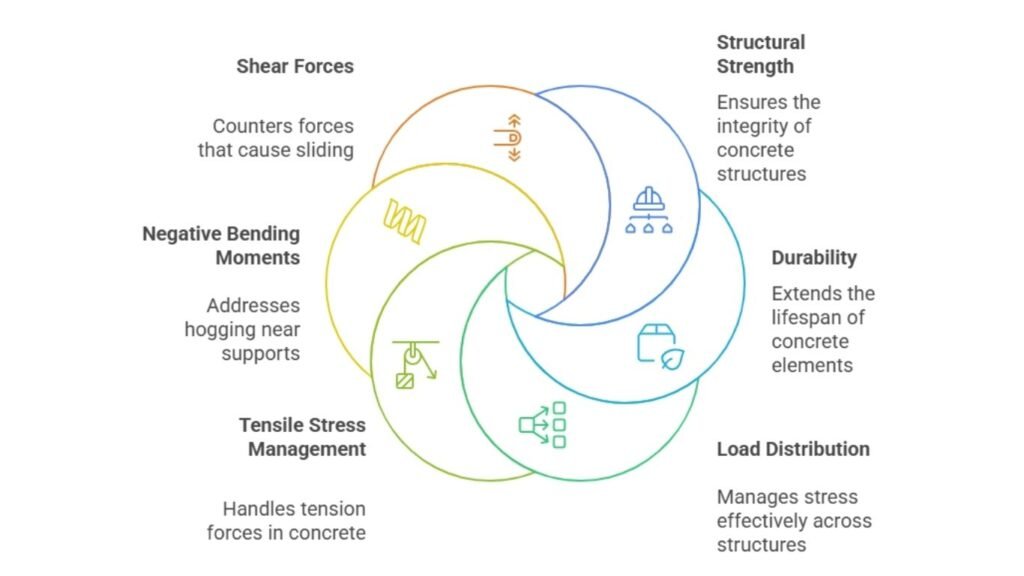

The Six Technical Reasons Crank Bars Exist
1. Resist negative bending moments at supports The crank bar lifts itself into the top zone exactly where the bending moment reverses sign — placing tension steel precisely where the slab needs it.
2. Control cracks near supports Adequately anchored top steel provided by the crank prevents the telltale cracking pattern that appears along the line of support walls in unreinforced top zones.
3. Maintain required effective depth Effective depth (d) — the distance from the compression face to the centroid of tension steel — must be maintained consistently. Cranks achieve this on both faces without complex detailing.
4. Resist diagonal tension (shear) The inclined portion of the crank bar crosses potential diagonal shear crack planes, contributing to shear resistance in the slab near supports.
5. Reduce congestion at supports Instead of providing separate, additional top bars that crowd an already-reinforced zone, the crank bar extends from the existing bottom reinforcement — using the same bar for both zones.
6. Economical use of steel One cranked bar performs the function of two separate bars (one bottom, one top), reducing total steel quantity and cutting BBS length calculations.
What happens if crank bars are NOT provided? The top face of the slab near supports has no tension reinforcement. Negative bending moment causes tensile stress on the top surface that plain concrete cannot resist. Result: diagonal cracking at slab-wall junctions, progressive crack widening, and — over years — structural degradation of the slab edge. This is one of the most common failure modes in low-cost residential construction where crank bars are skipped to save steel.
Crank Bar Formula — Length Calculation
This is the most searched section of any crank bar article. Here it is, clearly structured.
The Formula
Crank Length (inclined portion) = (D - 2c) × cot θWhere:
- D = Overall depth of slab (mm)
- c = Clear cover on each face (mm) — deduct once for top cover, once for bottom cover, giving total (D – 2c) as the available depth for reinforcement travel
- θ = Angle of crank (45° is standard; 30° for thinner slabs)
- cot 45° = 1.000
- cot 30° = 1.732
Note for BBS calculation: In standard practice, many engineers simplify to:
Crank Length = 0.42dwhere d = effective depth (D – cover – half bar diameter). This gives a practical approximation for site use and BBS preparation.
Worked Example — 45° Crank
Given: Slab thickness = 120mm, Clear cover = 25mm, Bar diameter = 10mm, Crank angle = 45°
Step 1: Available depth for crank travel = D – top cover – bottom cover = 120 – 25 – 25 = 70mm
(Alternatively: effective depth d = 120 – 25 – 5 = 90mm, then crank = 0.42 × 90 = 38mm — both methods give close results; the exact formula is more precise)
Step 2: Crank length = 70 × cot 45° = 70 × 1 = 70mm
Ready-to-Use Crank Length Table (45° Angle, 25mm Cover)
| Slab Thickness (D) | Cover (each face) | Available Depth (D-2c) | Crank Length @ 45° | Crank Length @ 30° |
|---|---|---|---|---|
| 100mm | 25mm | 50mm | 50mm | 87mm |
| 110mm | 25mm | 60mm | 60mm | 104mm |
| 120mm | 25mm | 70mm | 70mm | 121mm |
| 125mm | 25mm | 75mm | 75mm | 130mm |
| 130mm | 25mm | 80mm | 80mm | 139mm |
| 150mm | 25mm | 100mm | 100mm | 173mm |
| 175mm | 30mm | 115mm | 115mm | 199mm |
| 200mm | 30mm | 140mm | 140mm | 243mm |
Exam Tip: For 45° crank, cot θ = 1, so the crank length simply equals the available depth (D – 2 × cover). For 30° crank, multiply that value by 1.732. This is the most commonly asked numerical in SSC JE civil papers.
Standard Crank Angles — 45° vs 30°
45° Crank (Standard — Most Common)
The 45° bend is the default crank angle specified in most Indian structural drawings and referenced in SP 34:1987 (Handbook on Concrete Reinforcement and Detailing).
Why 45°?
- Creates an inclined bar that crosses diagonal shear crack planes at near-perpendicular angle — maximising shear resistance
- Easier to bend accurately on-site with a standard bar bender
- Shorter inclined length = less additional bar length = more economical
- Standard in all Indian IS code detailing references
When to use: All slabs from 100mm thickness and above. Standard residential and commercial slab construction.
30° Crank (Shallow Slabs)
For very thin slabs (below 100mm, which is rare) or when a gentler transition is needed to avoid sharp bends that could weaken the bar, a 30° angle is used.
When to use: Thin sunshades, chajjas, and slabs under 100mm thickness where the 45° bend would create too abrupt a geometry.
Critical Site Rule: Never heat a bar to bend it unless it is specifically permitted by the design. Heating above 600°C destroys the thermo-mechanical treatment in TMT bars, eliminating the strength advantage of the hard outer layer. All bends must be made cold using a bar bender.
Where Crank Bars Are Used
Crank bars appear wherever the bending moment profile requires reinforcement to be present at both the top and bottom of a structural element at different locations along the span.
Primary Applications
One-Way Slabs The most common application. In a one-way slab, alternate bars are cranked at L/4 from each support. The remaining bars continue as straight bottom bars. This gives top reinforcement in the support zone without providing 100% additional top bars.
Two-Way Slabs Cranking applies in both the short and long span directions near column and wall supports. In two-way slabs supported on all four sides, the negative moment near all edges must be covered — crank bars handle this efficiently.
Cantilever Slabs (Balconies, Chajjas, Sunshades) Here the logic reverses. In a cantilever, the tension face is always the TOP. Main reinforcement runs at the top throughout. A crank may still appear at the fixed support junction to transition bars from the parent slab’s bottom zone to the cantilever’s top zone.
Staircase Waist Slabs At the landing junction, the spanning direction and moment profile change — crank bars handle the transition between the inclined waist slab and the horizontal landing slab.
Beams In beams, bent-up bars were historically used (and still appear in older designs) to resist diagonal shear forces near supports. Modern design typically uses vertical stirrups for shear, but bent-up bars remain in some detailing standards as supplemental shear reinforcement.
Crank Bar vs Bent-Up Bar vs Cranked Bar — Same Thing?
This creates consistent confusion on-site and in exams. Here is the definitive answer:
Are crank bar, bent-up bar, and cranked bar the same? Yes — these are three names for the same element. “Cranked bar” and “crank bar” are used interchangeably in Indian practice. “Bent-up bar” is the older terminology still found in British Standard-influenced texts and older IS code references. “Crank rebar” is the term used in American/international English. All refer to the same reinforcement bar that is bent at an angle to shift its vertical position within the structural element.
| Term | Region/Context | Usage |
|---|---|---|
| Crank bar | India — primary term | Standard in all current Indian drawings and specifications |
| Cranked bar | India — alternative | Equally acceptable, used interchangeably |
| Bent-up bar | Older Indian/British practice | Found in pre-2000 IS code references and British Standard-influenced designs |
| Crank rebar | International/US English | Same concept, used in global engineering communication |
| Crank reinforcement | Technical/formal writing | Used in IS code and academic literature |
Crank Bar Placement — Technical Rules (IS 456 & SP 34)
Rule 1 — Crank Point Location
The crank point (start of the upward bend) must be placed at L/4 from the face of the support, where L is the effective clear span.
Why L/4? This is approximately where the bending moment diagram crosses zero (the point of contraflexure in a uniformly loaded continuous slab). Beyond this point toward the support, the moment is negative — the bar needs to be in the top zone. Before this point toward mid-span, the moment is positive — the bar belongs at the bottom.
Example: For a 3.5m clear span slab:
- L/4 = 3500/4 = 875mm from face of support
- The crank bend begins 875mm from the wall/beam face
Rule 2 — Cranking Zone
The cranking zone is the inclined length of bar between its bottom and top positions (calculated using the crank length formula above). The bar must clear both the bottom reinforcement below and the top reinforcement above as it travels through the slab depth.
Rule 3 — Top Anchor Length
After the crank bar reaches the top zone, it must extend a minimum anchor length beyond the crank point. As per IS 456:2000:
- Minimum anchor in tension zone = Ld (Development Length)
- For Fe500 bars in M20 concrete: Ld ≈ 40 × bar diameter for plain condition
Practical rule: The top horizontal portion of the crank bar must extend at least 0.3L into the top zone (i.e., 0.3 × span from the support face), or to the first interior crank point — whichever is greater.
Rule 4 — Alternate Bar Cranking
In standard one-way slab detailing, alternate bars are cranked — not every bar. The remaining bars either:
- Continue as straight bottom bars and are curtailed at the support, or
- Are lapped with separate short top bars near the support
This gives approximately 50% top steel near supports from the cranked bars, supplemented by additional top bars where the design requires full top reinforcement.
Rule 5 — Minimum Bend Diameter
As per IS 2502:1963, the minimum internal diameter of the crank bend:
- For bars up to 25mm diameter: 4 × bar diameter
- For bars above 25mm diameter: 6 × bar diameter
This prevents cracking of the bar at the bend point.
ranking Zone — Explained for BBS Calculation
The cranking zone is the portion everyone forgets when preparing a Bar Bending Schedule. Here is exactly how it affects your total bar length calculation.
Total Crank Bar Length Formula (for BBS)
Total bar length = L1 + Crank Length + L2 + Hooks (if any)Where:
- L1 = Horizontal bottom length from one end to crank point
- Crank Length = Inclined cranking zone length = (D – 2c) × cot θ
- L2 = Horizontal top length from end of crank to far end of bar
- Hooks = Additional length for standard 90° or 180° hooks at bar ends
BBS Worked Example
Given:
- Slab span (L) = 3,000mm (clear span)
- Slab thickness (D) = 120mm
- Cover = 25mm
- Bar diameter = 10mm HYSD (Fe500)
- Crank angle = 45°
- Support width = 230mm each side
Calculation:
Effective span = 3000 + 230 = 3230mm (centre to centre of supports)
L1 (bottom length) = Effective span × 3/4 ÷ 2 = 3000 × 3/4 / 2 = …
Simplified approach used on site:
- Bottom horizontal = Span × 0.42 ≈ 1260mm
- Crank length = (120 – 50) × 1.0 = 70mm
- Top horizontal = Span × 0.33 ≈ 990mm from crank point
- End anchors (into supports, both ends) = 2 × 230 = 460mm
Total bar length = 1260 + 70 + 990 + 460 = 2,780mm ≈ say 2.80m per bar
BBS Exam Tip: In most university and SSC JE papers, the crank length additional value is given as 0.42d where d is the effective depth. Always add this to the straight bar length — it is the most commonly forgotten element in BBS calculations.

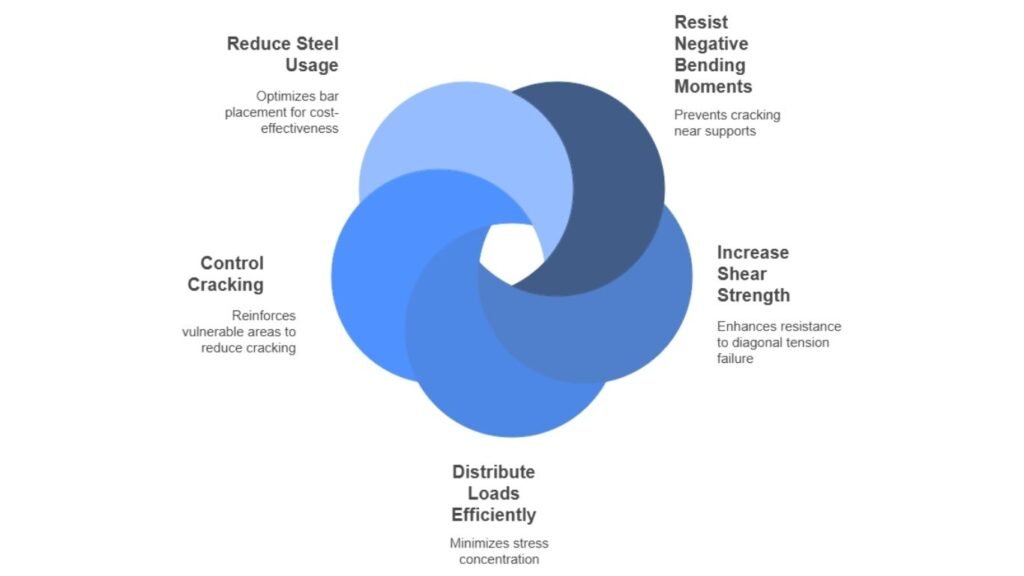

Advantages of Crank Bars — Summary
| Advantage | Technical Reason |
|---|---|
| Resists negative moment at supports | Steel positioned in top tension zone without extra bars |
| Reduces top surface cracking | Continuous top steel prevents crack opening at slab-wall junctions |
| Contributes to shear resistance | Inclined bar crosses diagonal tension crack planes |
| Economical steel use | Single bar serves both bottom mid-span and top support zones |
| Maintains effective depth accuracy | No additional cover blocks needed for top reinforcement |
| Reduces steel congestion | Fewer bars at support zone compared to adding separate top bars |
| Ensures continuity of reinforcement | Force transfer is continuous across the cranking zone |
Practical Site Guidelines — For Site Engineers and Supervisors
Use this checklist during reinforcement inspection before any slab concrete pour:
Pre-Pour Crank Bar Checklist
Location Check
- Crank points are at L/4 from face of support — verify with tape measure on at least 3 bars
- All alternate bars (not every bar) are cranked — count the pattern
- Straight bottom bars are at correct level with proper cover blocks
Geometry Check
- Crank angle is 45° (verify by eye or with an angle gauge — the bar should rise at 45° through the slab depth)
- Crank height matches slab depth minus cover on both faces — check with a steel rule
- No bars have been heated during bending — check for blue/black discolouration at bend point
Anchorage Check
- Top horizontal portion extends minimum 0.3L from support face (or as specified on drawing)
- Bars are properly tied to prevent movement during concreting
- Cover blocks are placed under bottom bars AND under cranked top portion near supports
Concrete Pour
- Ensure vibrator does not push bars out of position — specify poker vibrator approach angle to supervisor
- Check bar position with a reinforcement depth gauge after vibration in a test area
Most Common Site Mistake: The crank point is placed at L/5 or L/6 instead of L/4 — “moving it a bit closer to the wall to be safe.” This is wrong. Moving the crank point closer to the support means the top steel arrives in the support zone too late, leaving a section of slab near L/4 with no top reinforcement where the moment has already gone negative.
IS Code References for Crank Bars
| IS Code | Clause | What It Covers |
|---|---|---|
| IS 456:2000 | Clause 26.2 | Development length requirements for anchoring cranked bars |
| IS 456:2000 | Clause 26.5.1 | Maximum spacing of tension reinforcement (applies to cranked bar spacing) |
| IS 456:2000 | Clause 22.3 | Effective span calculation (determines L for L/4 crank point) |
| IS 2502:1963 | Clause 5 | Bending and hooking of reinforcement bars — minimum bend diameter |
| SP 34:1987 | Chapter 5 | Handbook on detailing — standard crank bar layouts for one-way and two-way slabs |
Frequently Asked Questions (FAQ Schema Section)
Q: What is a crank bar in RCC?
A crank bar in RCC is a reinforcing steel bar bent at 45° (or 30°) that shifts from the bottom of the slab at mid-span to the top of the slab near supports — following the bending moment profile to place steel in the tension zone at every point along the span. It is also called a cranked bar, bent-up bar, or crank rebar.
Q: What is the crank bar formula?
Crank length = (D – 2c) × cot θ, where D = overall slab depth, c = cover on each face, and θ = crank angle. For 45°, cot θ = 1, so crank length = (D – 2c). For 30°, cot θ = 1.732, giving a longer inclined length. An alternative simplified formula used in BBS practice: Crank length = 0.42 × d, where d is the effective depth of the slab.
Q: Where is the crank point in a slab?
The crank point is located at L/4 from the face of the support, where L is the effective clear span of the slab. This is approximately the point of contraflexure where the bending moment changes from positive (sagging) to negative (hogging). Placing the crank point here ensures the bar is at the bottom where required and at the top where required.
Q: What is the cranking zone?
The cranking zone is the inclined portion of the crank bar — the diagonal length of bar between its bottom position and top position. This inclined length is what you calculate using the crank length formula and what you must add to straight lengths in a Bar Bending Schedule.
Q: What is the standard crank angle?
The standard crank angle is 45° for most slabs of 100mm thickness and above, as per SP 34:1987. A 30° angle is used for thinner slabs or where a gentler transition is required. The 45° angle is preferred because it crosses diagonal shear crack planes effectively and produces a shorter (more economical) inclined length.
Q: Are crank bar and bent-up bar the same?
Yes — crank bar, cranked bar, bent-up bar, and crank rebar all refer to the same reinforcement element. The term “bent-up bar” is older terminology from British Standard practice still found in pre-2000 IS code references. “Crank bar” and “cranked bar” are the current standard Indian terms.
Q: Do all slabs need crank bars?
Most one-way and two-way slabs use crank bars in the alternate bar system. However, some structural designs provide straight bottom bars throughout and use separate short top bars near supports — this is an alternative approach. Crank bars are typically more economical. Cantilever slabs never use crank bars in the traditional sense because the main tension zone is always the top face.
Q: What is the minimum bend diameter for a crank bar?
As per IS 2502:1963, the minimum internal diameter of any reinforcement bend (including crank bars) is 4× the bar diameter for bars up to 25mm, and 6× the bar diameter for larger bars. For a standard 10mm slab bar, the minimum internal bend diameter is 40mm.
Q: What happens if crank bars are not provided?
If crank bars or alternative top reinforcement are not provided, the top face of the slab near supports has no steel to resist negative bending moments. This causes tensile cracking at the top surface along the line of the support walls, typically appearing as transverse cracks running parallel to the wall. Over time, these cracks widen, allowing moisture ingress, which corrodes the bottom reinforcement and accelerates structural deterioration.
Q: Which IS code covers crank bar requirements?
Crank bars are governed by IS 456:2000 (plain and reinforced concrete code of practice) for development length and detailing requirements, IS 2502:1963 for bar bending and hooking specifications, and SP 34:1987 (Handbook on Concrete Reinforcement and Detailing) for standard detailing layouts. For exam purposes, IS 456 and IS 2502 are the primary references.
Q: How do I calculate crank bar length for BBS?
Total crank bar length for BBS = Bottom straight length + Inclined crank length + Top straight length + Hook lengths (if applicable). The inclined crank length = (D – 2c) × cot θ. Add this to the horizontal lengths calculated from the span and crank point position (L/4 from each support).
Q: What is crank reinforcement?
Crank reinforcement is another term for cranked bar or crank bar reinforcement — the system of bending alternate bars in a slab to provide tension steel in both the positive moment zone (bottom, at mid-span) and the negative moment zone (top, near supports) using the same continuous bar.
Crank Bars in RCC Slabs
5-step visual guide — understand the full concept in under 60 seconds
A simply-supported slab deflects (sags) at mid-span under uniformly distributed load. The bending moment is maximum at the centre and zero at the supports. This creates tension and compression in different zones of the slab cross-section — and those zones change position along the span.
Navigate with ← → arrow keys
